DESCRIPTION

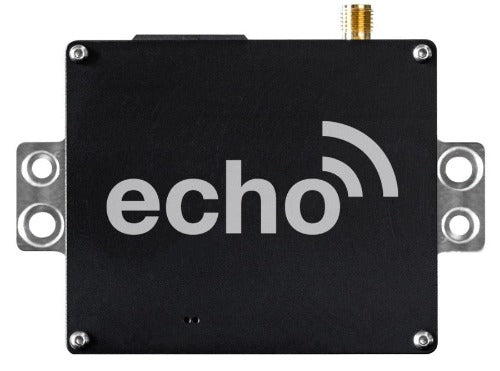

echoUAT from uAvionix
Affordable company ADS-B IN and OUT. echoUAT is a remotely mounted ADS-B transceiver that provides 2020 compliance ADS-B OUT, and ADS-B IN traffic and weather to your EFIS and iPad for the same cost as ADS-B receive-only solutions.
Bring New Life to Your Existing Panel
While other companies are looking to cash in on the ADS-B mandate by selling you a new transponder and WAAS GPS, uAvionix is taking a different approach. echoUAT works with your existing avionics, allowing you to put your savings in the fuel tank instead of additional costly avionics.
- Keep your Mode C transponder
- Use your existing WAAS GPS
- Traffic and Weather to your existing supported EFIS
- Support for popular iPad and Android Apps
Works with Your Existing Mode C Transponder
Already have a KT76A, Narco or Garmin Mode C? With the echoUAT integrated power transcoder, there is no need to replace your existing transponder. The power transcoder decodes squawk and pressure altitude by sensing pulses in the aircraft electrical system. Mode transponders require a wired connection to echoUAT.
What about Apollo, Becker, Funkwerk, Microair or Terra? Yes, those work too.
Use Your Existing WAAS GPS
EchoUAT works with your existing WAAS GPS. Fewer antennas to mount, less equipment to install and more value from your existing panel.
Currently supported GPS:
- GRT Safe-Fly 2020
- Garmin 400W series
- Garmin 500W series
- Garmin GTN series
- Avidyne ADS-B+

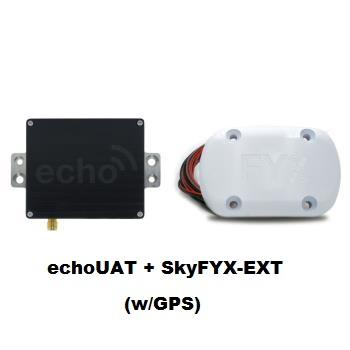

Don’t have an existing GPS? Add uAvionix SkyFYX GPS!
Features
Free Traffic and Weather to Your Favorite App
Traffic
EchoUAT receives dual-band ADS-B traffic information. 1090ES and 978(UAT) traffic broadcasts are displayed on supported EFB moving maps relative to your aircraft position and altitude.
- Receives 978MHz (UAT)
- Receives 1090MHz (1090ES)
- TIS-B Traffic reports of non-ADS-B equipped aircraft from FAA ground stations
- ADS-R rebroadcasts of ADS-B traffic from FAA ground stations
Weather
EchoUAT receives subscription-free in-flight weather (FIS-B) directly from FAA ground stations. FIS-B includes the following weather information:
- NEXRAD radar
- METARs
- TAFs
- AIRMETs
- SIGMETs
- Winds and temps aloft
- PIREPs
- NOTAMs
- TFRs
Specifications
| Specification | Value |
|---|---|
| Input Power | 11-33V DC |
| Size | 55x65x19mm |
| Weight | 60 grams |
| SIL/SDA | 2/3 |
| Operating Temp | -45 to 80°C |
| 978MHz UAT Transceiver | |
| Transmit Power | 20 Watts Nominal |
| Receiver Sensitivity | -91dBm |
| 1090MHz Receiver | |
| Sensitivity | -79dBm to 0dBm |
| COM1 Interface | |
| Devices | Dynon, MGL, GRT, AFS, Garmin |
| Function | Setup, Control, GPS Position |
| Physical | RS232 or RS485 |
| COM2 Interface | |
| Protocols | NMEA, ADS-B+ |
| Function | GPS Position, Traffic, FIS-B |
| Physical | RS232 |
| Wi-Fi | |
| Protocols | GDL 90 |
| Function | Setup, Traffic, FIS-B |
| Physical | 802.11b/g/n |
| Power Transcoder | Decodes Mode A and Mode C via DC input |
