DESCRIPTION

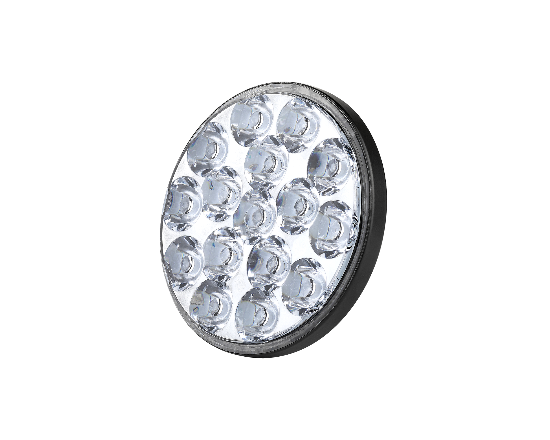

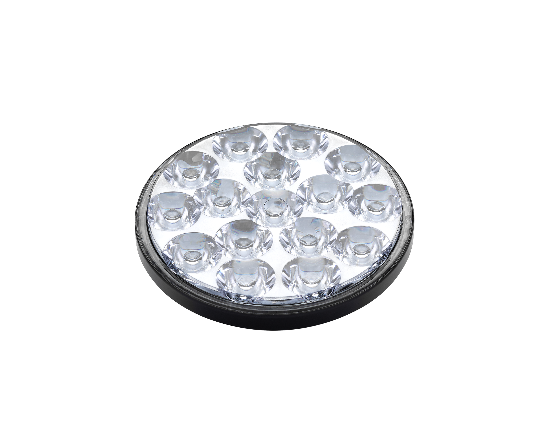

SunSpot 36 LXi - Landing
SunSpot 36 LXi is a new optimized version of our long-trusted
SunSpot 36 LX Landing Light.
SunSpot LXi features the same key features that come standard with
the SunSpot Series: Less power draw, more light output, unaffected
by vibrations compared to incandescent bulbs.
The SunSpot 36 replacement LED’s utilize the existing PAR36 mount
and electrical connections for ease of installation.
Features
• 75% more light output than the
traditional incandescent bulb
• Power consumption: 45W
• Color temperature – aviation white
• Easy installation
• 30k hr MTBF
• Built-in thermal protection

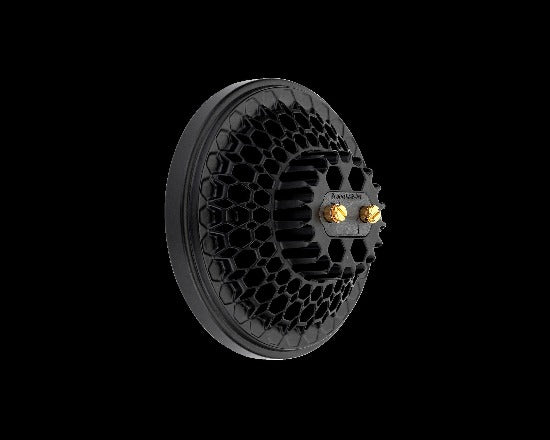

• Aluminum/black powder coated
heat sink
• UV hardcoated polycarbonate lens
Specifications
SPECIFICATIONS LANDING TAXI
36 LXi 01-1030-L-A 01-1030-L-B
Certification FAA-PMA/STC
Voltage 9-30VDC
Current 3.5A @ 14VDC
Power 45W
Lumens 5,000
Candela 140,000
Beam Profile
(@10% peak) 14° Vertical x 14° Horizontal
Dimensions
(L x W x D) 4.4” x 4.4” x 2.0”
Weight 11.2oz
Mounting PAR36
