XGPS150A

Part No:

Manufacturer: DUAL

Click here for compatible apps ideas for the iPod touch and iPhone devices

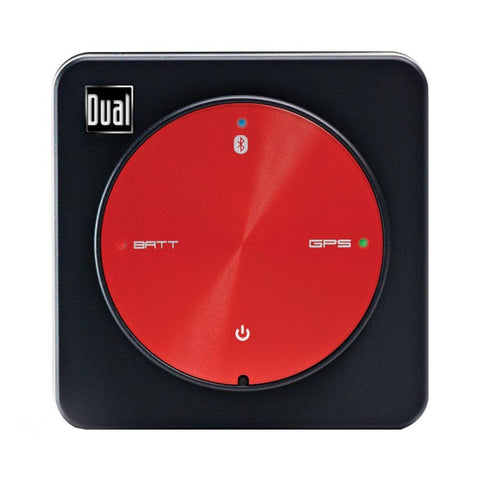

Universal Bluetooth GPS Receiver
for iPad, iPod touch, iPhone, and other Bluetooth-enabled smart phones, tablets and laptops

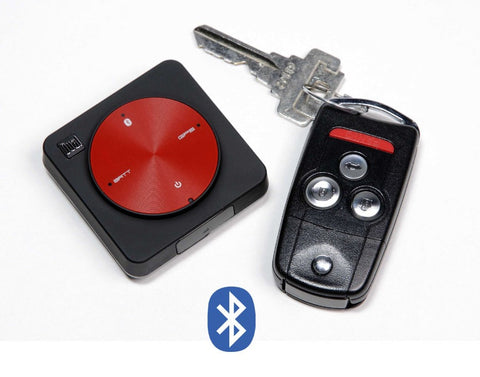

Small, portable design.

The Universal Bluetooth GPS Receiver is very simple to use. There is a quick set up process that includes pairing your device with the Receiver. Once this is done, the Receiver will automatically connect to the device it was last paired with, and you will be able to use it with hundreds of apps that require location information. Click here for compatible apps ideas for the iPod touch and iPhone devices.

The GPS Receiver also comes with a useful GPS Status Tool.app. (Available Free on the iTunes store). The app is a simple utility application for use with the GPS Receiver.The app shows detailed information from the GPS Receiver including:

  • Your location (or whether the device is still determining where you are)
  • How many satellites the device sees and the signal strength of each satellite
  • The battery level of the GPS Receiver, and whether or not it is charging
  • Confirmation the GPS Receiver is successfully connected to your iPad/iPod touch/iPhone

The GPS Receiver includes a non-slip pad for use in a car or on a boat. Simply slide the Receiver into the pad to secure it, making sure that the lip of the pad seals over the top edges of the Receiver. The Universal Bluetooth GPS Receiver is not waterproof, but it will withstand light splashes when it is seated properly in the non-slip pad.

A two-piece armband is also included for using the Receiver during hiking, geocaching, jogging, cycling and other outdoor activities. Use the armband without the extension to secure the GPS Receiver around the strap of a backpack, handlebar, etc.

Click here to download the product manual

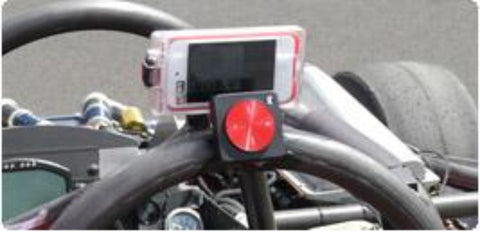

Shown in car, inside the included non-slip pad.

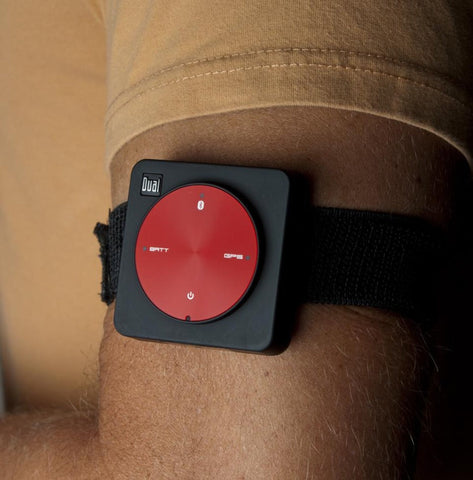

Shown inside the included armband.

Shown secured to a backpack with the included armband.






Key Features:

  • High-sensitivity GPS receiver works with most apps that require GPS
  • Wirelessly connects to devices via Bluetooth
  • Rechargeable battery lasts up to 8.5 hours
  • USB charging via the included USB cable
  • Includes a non-slip dashboard pad
  • Includes an adjustable strap to attach to an arm or a backpack
  • Includes 12V adapter (XGPS150)
  • Includes 12-28V adapter (XGPS150A)

Included:

  • The XGPS150A GPS Receiver

  • 12-30V Cigarette Lighter Adapter

  • Mini USB to USB charging cable

  • Non-slip pad

  • Status Tool App (free download from the iTunes and GooglePlay Stores)

  • Owner’s manual with warranty information

Technical Specs:

  • GPS
    • 65-channel SkyTraq GPS chipset
    • WAAS/EGNOS compatible
    • Accuracy: +/-2.5m (CEP)
    • Fast location acquisition times: under 30 secs (warm or cold start)
    • Position updates: at least once per second
    • Maximum speed: 1000 kts / 1150 mph
    • Maximum altitude: 18,000 m / 59,000 ft
  • Bluetooth
    • Bluetooth range: 33 ft / 10m
  • Battery
    • Full charge lasts for at least 8.5 hours of continuous use
    • Recharges in 2.5 hours
    • Plug in to 12VDC source for continuous use
  • General
    • Supports both NMEA and Apple protocols
    • Firmware updateable through USB port
    • Small and light:
      • 2.25” (57 mm) square, 0.75” (19 mm) deep
      • 1.8 ounces / 51 grams
    • Operating temperature: 14°F - 140°F (-10°C - 60°C)

See below for answers to our most popular questions.
