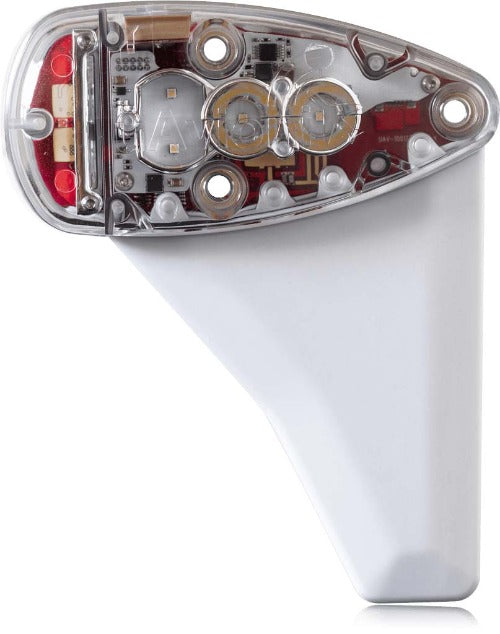

skyBeacon ADS-B System

Part No:

Manufacturer: uAvionix

Easy Installation! Installation is as simple as replacing your nav light.

No airframe modifications or additional antennas are required, skyBeacon uses the existing mounting location and wiring.

All-in-one ADS-B solution includes:

  • UAT ADS-B Out

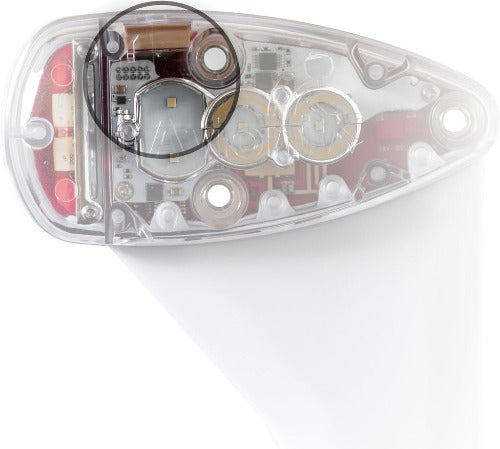

  • Integrated WAAS GPS

  • Works with any Mode C transponder wirelessly

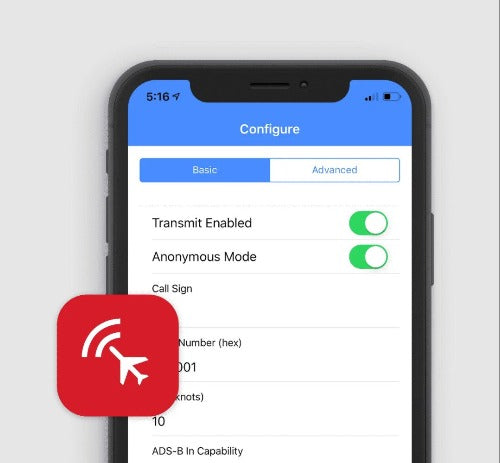

  • Supports Anonymous Mode

  • Integrated LED Navigation light

Goof-Proof Configuration

Don’t know your ICAO or lateral GPS offset? No problem.

The skyBeacon mobile application will automatically configure the ICAO address, emitter type, aircraft length, width and GPS offsets by accessing the aircraft registration information stored online.

Everything you need for 2020 and beyond

  • Broadcasts on the UAT/978MHz frequency for operation up to FL180 within the U.S

  • WAAS GPS

  • Supports Anonymous Mode

EXPERIMENTAL AND TSO VERSIONS AVAILABLE!

Specification Value
Input Voltage 11-31V DC
Operating Power 3 watts
Size 124x116x48mm
Weight 90 grams
SDA/SIL 2/3
Operating Temp -45°C to 80°C
978MHz UAT Transmitter
Power Classification DO-282B Medium Power
WAAS GPS
Tracking
Reacquisition
Cold Start
-166dBm
-160dBm
-148dBm
LED Position Light
Color Aviation Red
Intensity 40 candelas
Wi-Fi Configuration
Physical 802.11b/g/n
App Compatibility iOS, Android
Power Transcoder Decodes Mode A and C via Power Transcoder
