SANDIA
DESCRIPTION

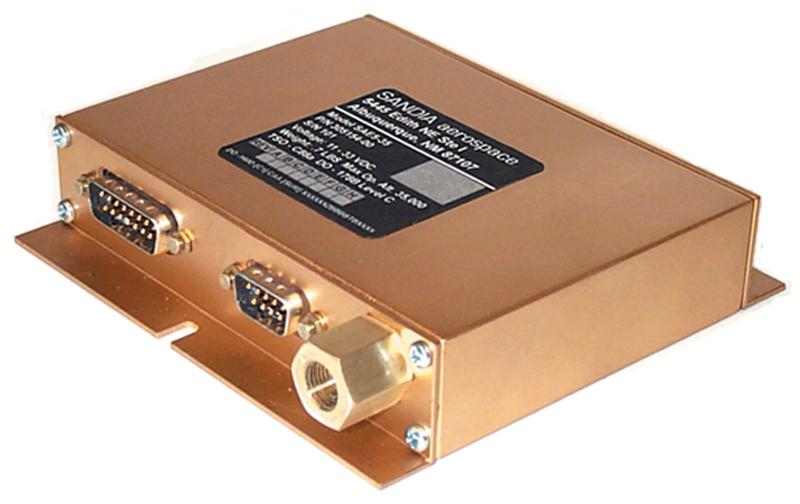

The new SAE5-35 has given sight to the blind encoder by combining Mode C encoding with an Altitude Inflight Monitor (AIM) and multiple RS-232 outputs for GPS and terrain awareness systems. The AIM function keeps a constant eye on the pilot's selected cruise altitude and advises any altitude deviation of 100 ft. Certified to 35,000 feet, the SAE5-35 provides transponder Grey code output and two RS-232 digital outputs in a single unit eliminating the need for any other special adapters or serializers.
Specifications
| SIZE: | 1.06"H x 4.87"W x 4.74"D | WEIGHT: | .7 lbs |
| ALTITUDE: | 35,000 feet | CURRENT: | .9 amps (w/heater on) |
| OUTPUTS: | One Grey Code, Two RS232 | RESOLUTION: | Grey Code-- 100 feet, RS232-- 10 feet |
| ACCURACY: | 50 feet or better throughout range | TSO: | C88a |
