COMANT

CI 105 DME Transponder

Part No: CI-105

$205.00
Shipping calculated at checkout.
DESCRIPTION

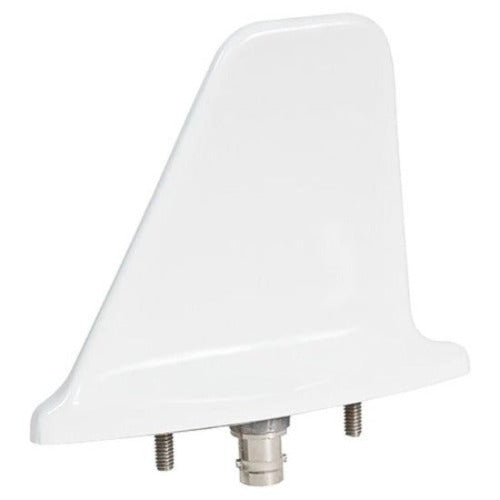

Comant CI 105 DME Transponder

Broadband and rugged antenna designed for DME or transponder use. Antenna assembly encased in a glass reinforced polyester molded shell. Standard two stud mounting configuration. CI 105 includes a BNC connector.

Features
  • Encased in a glass reinforced polyester molded shell
  • Standard two stud mounting configuration
  • Includes a BNC connector
Specifications

Electrical :

FREQUENCY 960 to 1220 MHz 1030 to 1090 MHz
VSWR 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz
POLARIZATION Vertical
RADIATION PATTERN Equivalent of l / 4 Stub
IMPEDANCE 50 Ohms
RESISTANCE DC Open Circuit
POWER RF 2.5 KW Peak



Mechanical :

WEIGHT 0.24 lb. Maximum
HEIGHT 3.23 in. Maximum
MATERIAL Molded Radome
FINISH White Polyurethane Enamel (Standard)
CONNECTOR BNC (female)
GASKET B10006



Environmental :

TEMPERATURE -54°C to +55°C
ALTITUDE 70,000 ft.
AIR SPEED 400 Knots TAS at 25,000 ft.



Federal Specifications :

RTCA ENVIRONMENTAL DO-160C
ENVIRONMENTAL CATEGORY [E1]-B[CLY]XRHXXXXXXXXXXXXXX
FAA TSO C66b, C74c
RTCA MOPS DO-144, DO-189
