COMANT

Comant CI-1125 / CI-1125-TNC Diplexer 2 VOR/2 GS

Part No: CI-1125

$250.00 $280.00
Shipping calculated at checkout.
DESCRIPTION

Comant CI-1125 / CI-1125-TNC Diplexer 2 VOR/2 GS

Frequency 108-118 MHz & 329-335 MHz

Dual VOR/Dual GS diplexer features diplexer circuitry in a small die-stamped housing for high reliability. Provides operation between two VOR receivers and two glide slope receivers from the same VOR/GS antenna.
Specifications

MODEL CI 1125 DIPLEXER DUAL VOR/ DUAL GS

Electrical

Frequency

108-118 and 329-335 MHz

VSWR

1.5:1 Maximum

Insertion Loss

0.6 dB Maximum

Isolation

20 dB Minimum between VOR & GS
18 dB Minimum between VOR Ports
18 dB Minimum between GS Ports

Impedance RF

50 Ohms

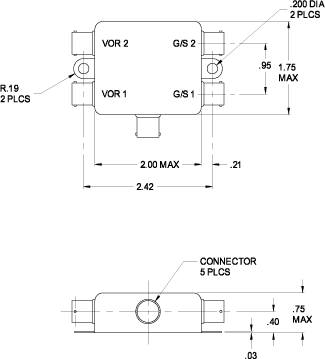

Mechanical

Weight

0.25 lb. Maximum

Height

0.75 in. Maximum

Finish

Aluminum

Material

Aluminum

Connector

BNC ((Female)

Environmental



Internal Mount

Federal Specifications

FAA TSO

C34c, C36c, C40a
