COMANT
Pickup available at 22783 Airport Rd NE
Usually ready in 24 hours
DESCRIPTION

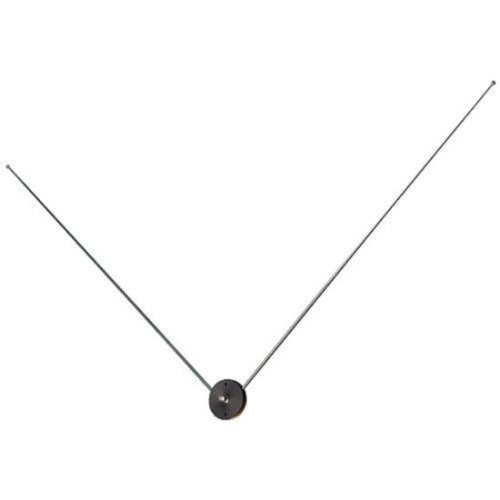

Comant CI 158C VOR/LOC/GS
“V” Dipole VOR/LOC/GS antenna with detachable elements mounts on top of vertical stabilizer for most single engine general aviation aircraft. RF design similar to the CI 157P. Integral ferrite balun provides for higher radiation efficiency. Detachable elements result in a significantly smaller shipping and storage carton than fixed element versions.
• VOR/LOC/GS “V” Dipole antenna with detachable elements
• Suitable for most single–engine, general aviation aircraft
Applications
Consult your FBO or installation shop for best application information. Not approved for helicopter installations.
Frequencies Covered 108-118 MHz (VOR/LOC), 329-335 MHz (GS)
Specifications
Specifications
|
MODEL CI 158C-2 V- DIPOLE |
|
|
Electrical |
|
|
Frequency |
108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope) |
|
VSWR |
3.0:1 108-118 MHz (VOR/ LOC) 3.0:1 329-335 MHZ(Glide Slope) |
|
Polarization |
Horizontal |
|
Radiation Pattern |
Dipole |
|
Impedance |
50 Ohms Nominal |
|
Power |
Receive Only |
|
Mechanical |
|
|
Weight |
0.35 lb. Maximum |
|
Height |
17-5/8 in. Maximum |
|
Material |
Derlin Housing/ Stainless Whips |
|
Finish |
Black Housing/ Stainless Whips |
|
Connector |
BNC |
|
Environmental |
|
|
Temperature |
-55ºC to +85ºC |
|
Altitude |
50,000ft. |
|
Air speed |
250 Knots TAS @ 25,000 ft |
|
Federal Specifications |
|
|
RTCA Environmental |
DO-160 |
|
FAA TSO |
C34e, C38e, C40c |
|
RTCA MOPS |
DO-192, DO-195, DO-196 |
