DMNI70-2

Part No: DMNI70-2

$495.00
Shipping calculated at checkout.
DESCRIPTION

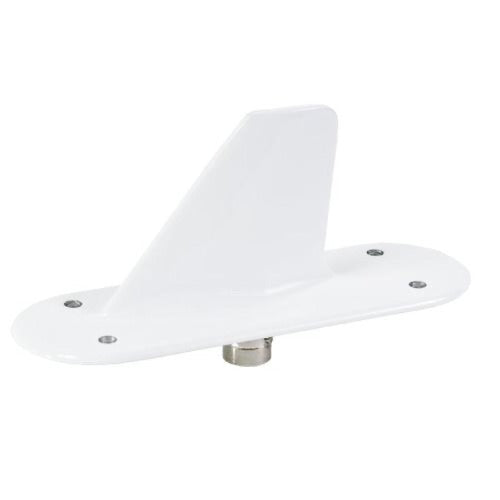

The DM NI70 - Series are L-band metal blades with and extended bandwidth for use with both transponders or distance measuring equipment. Sealed and waterproofed for increased reliability.

Features
  • L-Band DME/ATC Transponder Antenna
  • 950 MHz to 1,220 MHz Frequency Range
  • Provides omnidirectional, vertically polarized coverage when installed on top, or bottom of aircraft
  • Used with Civil Aviation ATC transponders & DMEs (after freq. range)
  • Streamlined shape, minimal aerodynamic drag
  • Single metal element
Specifications
Electrical
Frequency range 960 – 1220 MHz
VSWR
  960 – 1220 MHz
  1000 – 1100 MHz

Less than 1.7:1
Less than 1.5:1
Gain Equivalent to a quarter wave stub
Impedance 50 ohms
Polarization Vertical
Radiation patterns Omnidirectional
dc resistance Open circuited
Power handling 2 kW peak



Mechanical
Connector
  NI70-1, NI70-3
  NI70-2

Type C Female
Type BNC Female
Weight 0.25 lbs
Finish White



Environmental
Drag, sea level at 250 mph 0.5 lbs
TSO C66a ENV. CAT. JAJXXXXx
TSO C74b ENV. CAT. JAJXXXX
CAT. II
