DAVTRON INSTRUMENTS
DESCRIPTION

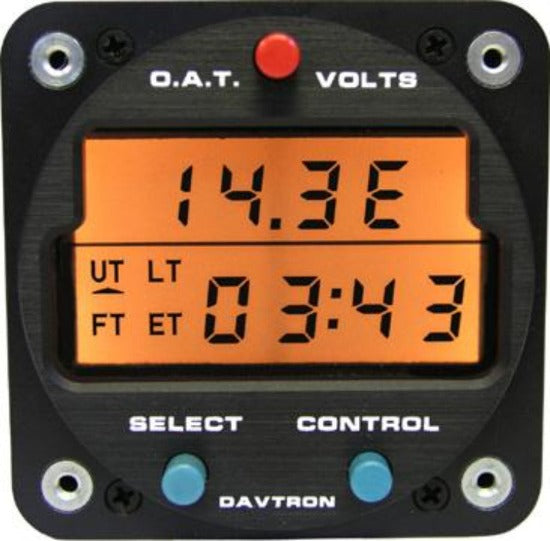

The Davtron M803 Digital Clock
- UNIVERSAL TIME
- LOCAL TIME
- FLIGHT TIME - FLIGHT TIME ALARM
- ELAPSED TIME - COUNT UP COUNT DOWN ALARM
- OUTSIDE AR TEMPERATURE (F & C)
- VOLTMETER
Model 803 operational input is 11V - 30V. The referenced 5V, 14V and 28V listed below identify lighting configuration for the backlight operation for nightime viewing. Local Time is user selectable 12 or 24 hour. If customer request custom set-up from the factory, contact distributor.
Features
FEATURES:
- Two button control system in natural and error free. Setting operations are IDENTICAL for both alarm and time setting (U.S. Patent #4,486,077)
- Sunlight readable display
- Display annunciations for UT,LT,FT and ET
- Flight time recorded in hours and minutes
- Flight time alarm with external output
- Elapsed time count down alarm with external output
- A 4 Megahertz crystal precision time reference.
- One button control steps sequentially through: Voltage (EMF), O.A.T. Fahrenheit, O.A.T. Centigrade
- Always selects to read voltage on power up for battery status check.
- Micro processor F and C conversion requires only one potentiometer for caliberation.
- Input Voltage - 14 or 28 Volts.
- Internal Lighting 5v-14v or 28v specify when ordering
- 2.25" standard mount - wt. 5.4 oz.
- Three year battery backup standard
Specifications
|
|
