Intelligent Lighting Controller

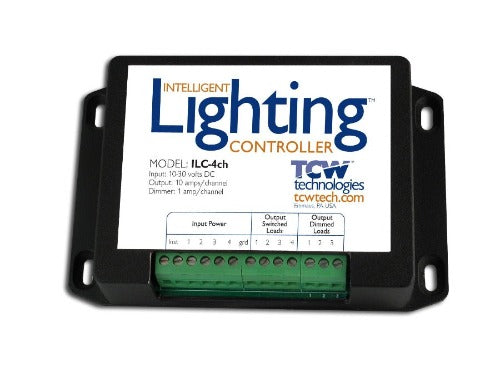

Intelligent Lighting Controller, ILC-4ch, is an electronic controller designed specifically to operate the lighting circuits used in homebuilt aircraft. ILC provides control of up to 4 lighting circuits plus dimmable control of up to 3 channels of instrument and cabin lights. The 4 lighting circuits may be used to control landing lights, taxi lights, strobe lights, and navigation lights. Each channel is independently powered and controlled. ILC also provides a wig-wag function between two of the lighting circuits. Each lighting circuit may control up to 10 amps of load. The 3 channels of dimmable lighting may be independently controlled. Each dimmable channel may include incandescent or LED lighting up to 1 amp. ILC operates from 10-30 Vdc.
Features and Benefits:
- Provides switching control for Landing, Taxi, Strobe, and Nav lights
- Provides dimming control of three independent channels o instrument/cabin lighting
- Provides Wig-wag function between two lighting channels
- Remote mountable cast aluminum enclosure
- Low current panel switching wire reduces wire load.
- Independent power and switching circuits for very high reliability
- Works with any panel switches and supports backlighting of switches
- Universal voltage 10-30 vdc.
- Made in USA
Specifications
| Input Voltage | 10 – 30 volts DC |
|---|---|
| Outputs | 4 switched circuits rated at 10 amps each 3 dimmed circuits rated at 1 amp each |
| Dimmers | True DC:DC converter with full power filtering and regulated 2-12 volt outputs |
| Inputs | All switch inputs are low current closures to voltage |
| Wig-Wag | 150 cycles/minute between channel 1 & 2 1 minute warm-up time |
| Wiring | Standard 15-pin dsub connector (male on controller for connection to switching panel Terminal blocks for all power connections rated for up to 12 awg wire |
| Enclosure | Overall dimensions 4.7” x 3.7” x 1.2” Cast aluminum |
| Weight | 1 lb. |
