MID-CONTINENT INSTRUMENTS AND AVIONICS
DESCRIPTION

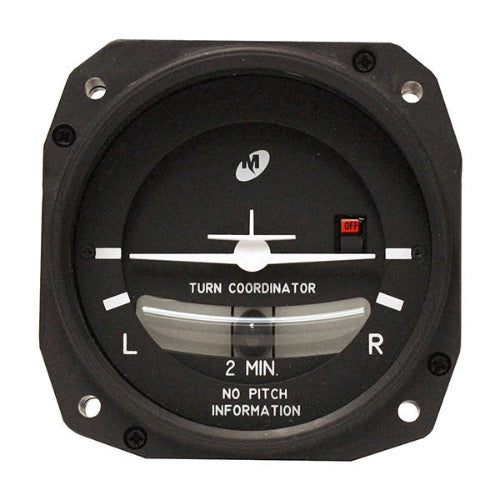

1394T100-7B
11–32 VDC, 3-pin, Black ball, Brushless - Low Wing
Engineered for a long service life, the “B” model turn coordinator features a proven AC rotor powered by a solid-state inverter, creating less heat behind the panel. Utilizing a brushless rotor design, this instrument has top industry ratings of 4,800 hours MTBF. It is ideal for use in high performance aircraft and cold-climate applications. This specific unit has 4,500 hours MTBF, and a brushless AC rotor that operates on 10–32 Volts DC. The improved “Off” warning flag now pulls out of view when the rotor is up to speed.
All 3-inch turn coordinators operate from 10–32 volts DC for convenience and reliability.
Features
- 4,500 hours MTBF
- Standard 2–minute turn indication
- 11 – 32V input voltage range
- 0.80A max starting, 0.35A running
- White inclinometer background with black ball
- Clear glass
- Compact 3 1/8" size fits standard panel cutout
- Front or rear panel mount
- One-year limited warranty
- Designed and built in Wichita, Kansas, USA
- FAA TSO certified to C3b
Specifications
| DIMENSIONS: | 3.25"W x 3.25"H x 5.00"D | WEIGHT: | 1.4 lbs. |
| ROTOR TYPE: | AC | ALTITUDE: | -1000 to 35000 ft. |
| POWER CONSUMPTION: | 0.28A | TEMPERATURE: | -30 to +50C |
| INPUT VOLTAGE RANGE: | 11 – 32 VDC | BEZEL LIGHTING: | No |
| INCLINOMETER BALL COLOR: | Black | INCLINOMETER BACKGROUND COLOR: | White |
| CONNECTOR NUMBER OF PINS: | 3 | TURN INDICATION:: | Standard 2-Minute Turn |
| GLASS: | Clear | MOUNTING: | 3 1/8" front or rear panel |
