MID-CONTINENT INSTRUMENTS AND AVIONICS

3300-10

Part No: 3300-10

$3,395.00
Shipping calculated at checkout.
DESCRIPTION

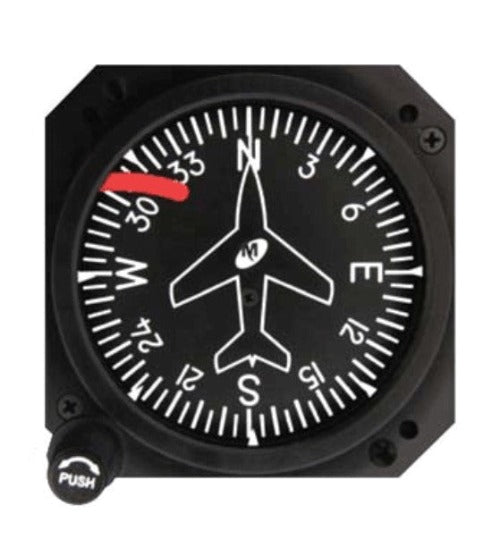

Advanced circuitry and improved design allow this directional gyro to withstand high vibration and require less than half the power of standard DGs. Lightweight (1.8 lbs.) and reliable, it utilizes long-life LEDs for a crisp, legible backlit display. With 10–32 volt DC input, it will work in any aircraft. Exceptional RTCA DO-160E HIRF immunity makes this an ideal replacement for heavy, older AIM and RC Allen units.
  • Custom versions available to match existing instrument/EFIS displays
  • Optional self-contained battery backup (Provides up to one hour of emergency attitude reference in the event of aircraft power failure)
    • Built-in annunciation
    • Internal emergency lighting
  • Single connector installation for primary and optional standby battery models
  • Exceptional value - 7,500 hrs. MTBF, more than double the life of most electric gyros
  • Perfect for use as a primary or standby artificial horizon in fixed-wing aircraft and helicopters
  • 10-32 volt DC replacement for use in either 14 or 28 volt aircraft
  • Anti-reflective glass enhances visibility and reduces fatigue
  • Field replaceable lighting
  • Approved to FAA TS)-C4c
  • One-year limited liability
Specifications
Specifications:
MTBF: 7,500 Hours
High-stability tungsten rotor operates at lower rotational speed, extending bearing life
Certification: FAA TSO-C4c
Power Input:

28 VDC version: 560 mA start, 250 mA max. running
Optional 10-32 VDC version:

  • 1290 mA start, 540 mA max. running at 14 VDC input
  • 560 mA start, 250 mA max. running at 28 VDC input
Battery: Rechargeable, custom lead-acid cell array
Life = 3 years in average arcraft environment
Runtime = 60 minutes minimum, when fully charged
Annunciators: Push to engage annunciator:
  • STBY PWR - standby power mode
  • TEST - battery test
Lighting: 5, 14, or 28 VDC; fuield replaceable tray wired through main connector
Glass: Special HEA anti-reflective coating
Weight: 2.7 lbs. or 3.7 lbs. with battery option
Length: 6.6 inches maximum, 8.6 inches with battery option
Mounting: Rear mount standard 3-1/8" round panel cutout
Temperature Range: -30°C to +50°C, -22°F to +122°F

Options: (please specify)

Power Output: 28 VDC fixed or 10 to 32 VDC
Lighting: 5, 14 or 28 VDC
Lighting Color: White, Blue/White or Red
Panel Tilt: 0° to 20°
Dial: Fixed or rotating roll dial configurations, traditional or delta wing airplane
Knob Cover: Restricts reference airplane adjustment
Emergency Battery: One hour run time; automatic charging system. Remote mountable
Inclinometer: Front-mounted, ball-type slip indicator
Mounting: Front mount available with ARINC style adapter plate
