ME406 406 MHz ELT
The ME406 is a 406 MHz ELT that will transmit on 121.5 and 406.028 MHz. Some key features of the new ME406 include a weight of 2 pounds; a mechanical footprint compatible with all Artex and some other ELT footprints. The ME406 features a small overall size and single antenna output feeding a wire whip antenna that transmits on both frequencies.
The Artex G406-4 transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. The G406-4 also transmits a 406.025 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time. The G406-4 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The G406-4 is available for use with Artex's low cost whip antennas or a sturdy fiberglass rod antenna. The G406-4 also may be interfaced with the Artex ELT/NAV Interface which enables latitude and longitude data to be transmitted as part of the 406.025 MHz message. The G406-4 is value priced to meet your ELT needs.
406 MHz Emergency Locator Transmitter (Type AF ELT) Cospas/Sarsat Approved, FAA TSO C126 Approved, ETSO-2C126 Approved
Features:
- Operates on 121.5, 243, and 4-6 MHz frequencies with worldwide coverage
- Compatible with the ELT to navigation interface, which enables latitude and longitude data to be transmitted as part of the 406 MHz message
- Equipped with a Lithium-Ion battery with a five-year life
- System versions listed below included install kits

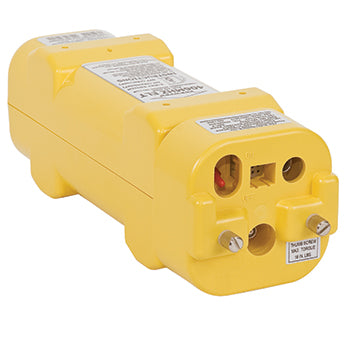

This variant of the G406-4 ELT (EDMO# 455-5019) includes:
- G406-4 transmitter (453-5012)
- Install Kit (455-7421)
- NAV Remote Switch Install Kit (455-6196)
- Remote Switch (345-6196-04)
- Mounting Tray (452-0227)
- Rod Antenna (110-320)
- Buzzer (130-4004)
- LiMnO2 5 year battery
- Operation/Install Manual
-
Manufacturer Part Number
|
455–5019
|
Weight
|
3 lb 5.8 oz
|
Dimensions
|
11.7 x 3.9 x 3.82 in (transmitter with mounting hardware)
|
Antennas
|
Rod Antenna (110-320)
|
Operating Frequencies
|
406 MHz, 121.5 & 243. MHz ± 0.005% (A3X)
|
Output Power
|
406 MHz: 5 W ± 2 dB (520 ms / 50 sec) for 24 hours @ –20° C
121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ –20° C
|

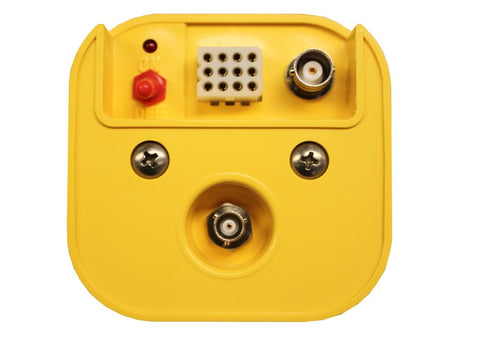

Output Connector
|
BNC Female (121.5/243 MHz)
TPS Female (406 MHz)
|
Activation
|
Automatic by 4.5 feet per second (2.3 G) Primary G–Switch
or Manual Activation
|
Battery
|
5 year Lithium (LiMnO2, solid cathode)
|
Temperature Certified to:
|
Operating: –20° C to +55° C
Storage: –55° C to +85° C
|
Self Test
|
G–Switch enabled
406 MHz Power
Antenna/Coax Connection
Position Data Present
Low Battery
|
Remote Control
|
ON/ARM
|
Certifications
|
TSO C126, ETSO 2C126
Cospas/Sarsat approved
Transport & Industry Canada approved
|
