DAVTRON INSTRUMENTS

655-1

Part No: 655-1

$285.00
Shipping calculated at checkout.
DESCRIPTION

Click here for current Davtron Product Details

O.A.T. C & F/ PRESSURE & DENSITY ALT/DCV/RECTANGLE (TEMP. PROBE INCLUDED) VOLTAGE & DEVIATION ALARM

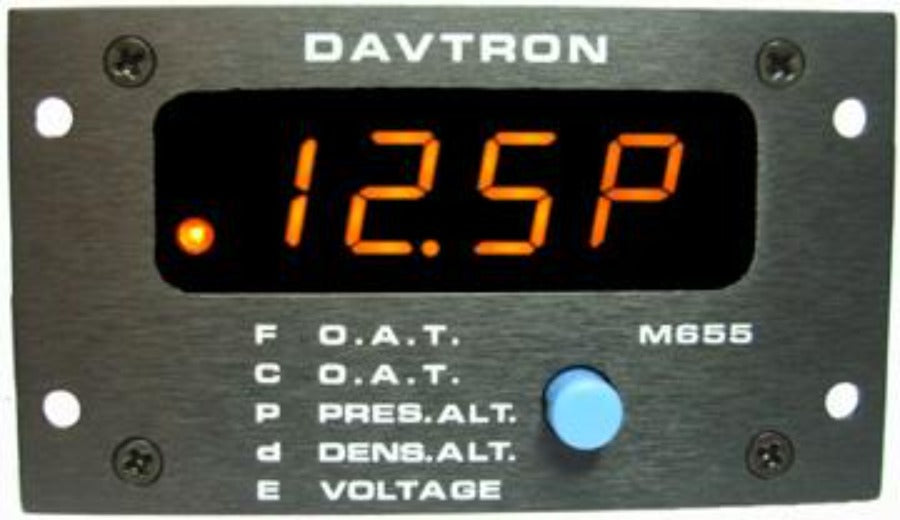

The Davtron M655 Five Function Indicator

Outside Air Temperature (F)
Outside Air Temperature (C)
Pressure Altitude
Density Altitude
Aircraft Voltage

A series of computer based products that bring digital information to the pilot at the push of a button. The Model 655 is a multi-function gauge that displays aircraft voltage, outside air temperature, pressure altitude, and computes density altitude for the pilot. Take-off roll length, maximum rate of climb, and fuel consumption can be determined from density atlitude and the aircraft's flight manual.

    Features
    • 2 1/4" standard mount or front mount
    • Outside air temperature (°f)
    • Outside air temperature (°c)
    • Pressure altitude
    • Density altitude
    • Aircraft voltage
    • Voltage alarm (not on nvg unit)
    • Deviation alarm (not on nvg unit)
    • Sunlight readable display
    • FAA/PMA Approved
    Specifications

    Specifications:

    • Density Altitude: -10,000 to 70,000 ft.
    • Pressure Altitude: -1,000 to 62,700 ft. (depends on encoder range)
    • Flashing annunciator character on incorrect encoder input
    • Temperature range: -55C to +100C (+-2C Typ.) -67F to +212F
    • Voltage range 10V to 32V (+-2 volts Typ.)
    • Incandescent display with automatic dimming
    • Input voltage: 14 or 28 volts
    • Input current: .35 amps Max.
    • Weight: 5 oz.
    • Warranty: 1 year
