7000-C31

7000-C31

Part No:

Manufacturer: UNITED INSTRUMENTS

VSI 0-2000 FT

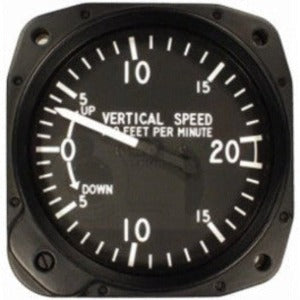

United Vertical Speed Indicator 7000-C31. United Instruments 7000 Series of Vertical Speed Indicators are known for their outstanding precision. The FAA Certified United Vertical Speed Indicator 7000-C31 provides an accurate and reliable indication of rate of change of altitude with a Range Out of 0-2000, and a UI Standard Range In. The ascent is indicated by a clockwise rotation of the pointer from zero, while the descent is indicated by a counter clockwise rotation. Zero is at the 9 o'clock position, and the stops limit pointer movement is found at the end of the scale. A zero adjustment screw is located on the face of the case at the seven o'clock position. Lighting is available upon request.

  • Certification: FAA TSO C8b
  • Case Configuration: MS33549, 3 inch
  • Typical Weight: 1.2 Pounds
  • Range: 0 - 2,000 fpm
  • Static Pressure Connection: 1/8-27 ANPT
  • Installation: Removable spring nuts and #6-32 Screws
  • Lighting: Available upon request
