DAVTRON INSTRUMENTS

800-14V Chronometer

Part No: 800-14V

$209.00
Shipping calculated at checkout.
DESCRIPTION

Aircraft Chronometer

Click here for current Davtron Product Details

 GMT, LT, & ET DIGITAL CLOCK 14 VOLT LIGHTING

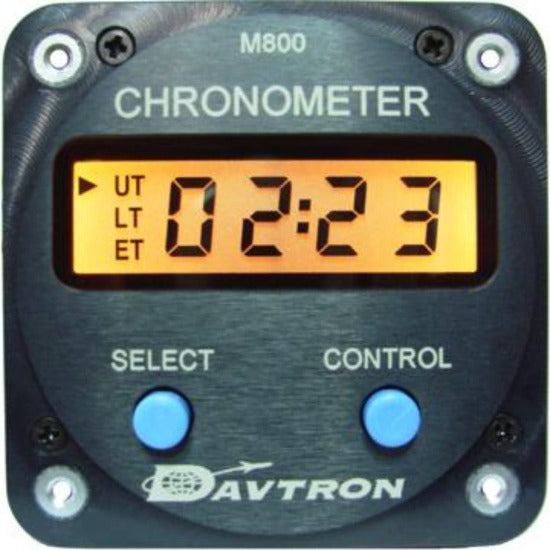

800-14V Chronometer

Model 800 operational input is 11V - 30V.  The referenced 5V, 14V and 28V listed below identify lighting configuration for the backlight operation for nightime viewing. Local Time is user selectable 12 or 24 hour.  If customer request custom set-up from the factory, contact distributor.


Easy two button operation providing Local Time, GMT, Elapsed Time and Countdown Timer with flashing alarm, all on a high contrast liquid crystal display.

Features
  • Digital Chronometer
  • 2 1/4" Internal Mount
  • Two button control system
  • Setting operations are identical for both alarm and time settings (US patent #4,486,077)
  • Universal time is in 24 hour format
  • Local time in 12 hour or 24 hour format
  • Elapsed time counter is from one second to 99 hours, 59 minutes
  • Elapsed time alarm is activated when countdown reaches zero
  • Alarm flashes display and has external output for optional audio alarm
  • Liquid crystal Display has high contrast in bright sunlight and uniform night illumination
  • Ultraviolet filter to prevent sunlight damage
  • Optional AA Battery Memory (see table below)
  • Optional illuminated buttons (see table below)
  • NVIS Lighting Green A MIL-STD-3009 option available (see table below)
  • FAA-PMA Approved
Specifications
  • Universal Time: 24 hour format
  • Local Time: 12 hour or 24 hour option, user selectable
  • Elapsed Time Count Up: Starts in minutes and seconds, then hours and minutes, up to 99:59 hours
  • Elasped Time Countdown: Settable from one second to 59 minutes and 59 seconds
  • Elapsed Time Alarm: Activates at zero when counting down
  • Internal Lighting: 230 mA at 5V, 120 mA at 14V, 50 mA at 28V (specify voltage when ordering)



  • LCD Display
  • Keep Alive Current: .004 Amps. 12 to 30 Volts
  • Voltage: 12 to 30 Volts
  • Option Battery: AA memory battery (specify when ordering)
  • NVIS Option: NVIS Green A lighting
  • Weight: 4 ounces
  • Warranty: 1 year
