DAVTRON INSTRUMENTS

903ID-1

Part No: 903ID-1

$425.00 $530.00
Shipping calculated at checkout.
DESCRIPTION

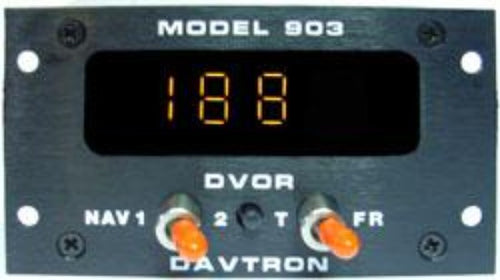

Davtron M903ID/LOC

Click here for current Davtron Product Details

 The Davtron M903ID/LOC meets the challenge to produce a small, affordable, lightweight indicator. This computer based instrument is a compact and effective component, enhancing any navigation system. The DVOR reads digitally to aircraft's radial position from the VOR station. The instantaneous To/From switching capability makes the 903 the easiest and fastest method of obtaining VOR checks. The localizer mode displays course deviation numerically with the equivalent resolution if a 1/2 dot of a CDI. The 903 takes the Morse code identifier signal fro the VOR station and displays sequentially the station letters on a single alphanumeric display. The letters are displayed at a clear readable rate. The 903 indicator can easily be switched to select NAV1 or NAV2 for use. The second toggle switch on the front panel selects either a Toor From bearing. The small push button switch is used for calibrationduring installation. The 903 becomes a signal level meter when the switch is pressed. An external signal level meter is no longer required for installation.


    Features

    M903ID Features



    • AUTOMATIC VOR POSITION ORIENTATION
    • LOCALIZER DEVIATION AND CENTERLINE
    • ALPHANUMERIC STATION IDENTIFIY "ID" M903ID
    • INSTANT TO/FROM SWITCHING
    • DIGITAL FILTERING AND SIGNAL PROCESSING
    • AUTOMATIC DIMMING
    • SUNLIGHT READABLE DISPLAY
    • SERIAL ASCII OUTPUT OF STATION & RADIAL OFF FLAG, "---"
    • FAA-PMA APPROVED
    Specifications

    SPECIFICATIONS:

    • Station Ident
    • 14 or 28 Volt operation
    • Input signal 0.35 to 10 Volts
    • Supply current 0.3 Amperes
    • Operating temperature range -20C to +55C
    • DVOR accuracy +/- 2 degrees
    • Weight 6 oz.
    • Warranty 1 year
