WHELEN
90520 Aircraft LED Flashing Beacon
Part No: 01-0790520-51
See Price in Cart!
Shipping calculated at checkout.
DESCRIPTION

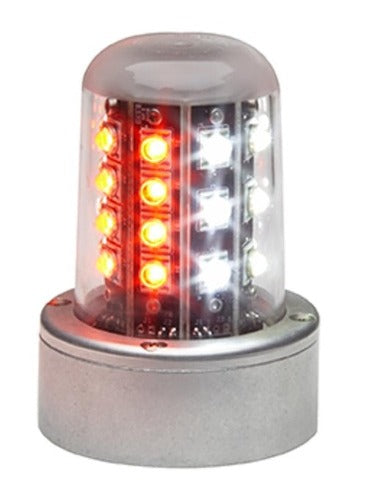

90520 Aircraft Locator Beacon
90520 Whelen LED Beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class III 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon.
LED Beacon Light Aircraft FAA/TSO & STC Approved
Designed to be flush-mounted behind a lens, the footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved.
Emergency Location Beacon Aircraft Information
- Current: 0.45 amps Average, 2.0 amps Peak @ 3 Sec. 28VDC
- Current: 0.90 amps Average, 4.0 amps Peak @ 3 Sec. 14VDC
- Weight: 0.65 lbs. (295gm) (-01 & -51)
- Lens: Clear polycarbonate
- Dimensions: 2.6 (66mm) Diameter, Exposed Height, 3.74(95mm) (-01 & 51)
Aircraft Locator Beacon Certifications List
9052000 - 01-0790520-00 - LED Rd/Wt Beacon, 28V (No Adapt, MateNLock)
FAA TSO-C96a Class III
9052001 - 01-0790520-01 - LED Rd/Wt Beacon, 28V (A470A Mount, FlyingLeads)
FAA TSO-C96a Class III
9052004 - 01-0790520-04 - LED Rd/Wt Beacon, 28V (5HoleAdapt, Flying Leads)
FAA TSO-C96a Class III
9052005 - 01-0790520-05 - LED Rd/Wt Beacon, 28V (3.75"Adapt, FlyingLeads)
FAA TSO-C96a Class III
9052007 - 01-0790520-07 - LED Rd/Wt Beacon, 28V (3.75"Adapt, MSConn)
FAA TSO-C96a Class III
9052008 - 01-0790520-08 - LED Rd/Wt Beacon, 28V (5HoleAdapt, MSConn)
FAA TSO-C96a Class III
9052014 - 01-0790520-14 - LED Rd/Wt Beacon, 28V (5HoleAdapt, FlyingLeads, Lower)
FAA TSO-C96a Class III
9052015 - 01-0790520-15 - LED Rd/Wt Beacon, 28V (3.75"Adapt, FlyingLeads, Lower)
FAA TSO-C96a Class III
9052017 - 01-0790520-17 - LED Rd/Wt Beacon, 28V (3.75"Adapt, MSConn, Lower)
FAA TSO-C96a Class III
9052018 - 01-0790520-18 - LED Rd/Wt Beacon, 28V (5HoleAdapt, MSConn, Lower)
FAA TSO-C96a Class III
9052050 - 01-0790520-50 - LED Rd/Wt Beacon, 14V (No Adapt, MateNLock)
FAA TSO-C96a Class III
9052051 - 01-0790520-51 - LED Rd/Wt Beacon, 14V (A470A Mount, MateNLock)
FAA TSO-C96a Class III
9052055 - 01-0790520-55 - LED Rd/Wt Beacon, 14V (3.75"Adapt, FlyingLeads)
FAA TSO-C96a Class III
