ACK

A-30.5 30K

Part No: A30.5

In Stock!
$249.00
Shipping calculated at checkout.
DESCRIPTION

A-30.5 30K

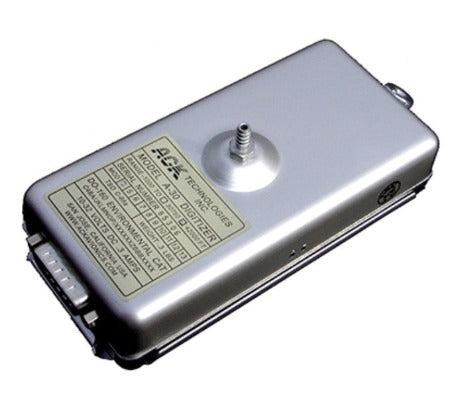

 Add Mode C capability to your aircraft the most cost-effective way. The ACK encoder features the latest solid-state electronics for high reliability. Installation is quick and easy and usually is completed in less than one hour. It is compatible with most transponders in use today and reports altitude to 30,750 ft. Includes quick-release mounting try, 4-ft. color-coded wiring harness with prewired jack, static line and fittings for installation in any aircraft, and installation manual in any aircraft, and installation manual with popular transponder pin-outs.









    Features

    Features



    • High Quality Construction
    • Gold Plated Connectors
    • Diecast Aluminium Chassis
    • Anodized
    • Range -950 to 30,750 feet



    Includes:

    Quick Release Mounting Tray

    4 Foot Harness

    4 Foot Static Line

    Installation Manual

    Three Year Guarantee



    Specifications
    • Approvals: FAA TSO C-88a
    • German LBA 10.221/4
    • Range: MOD 5 –950 to 30,750 feet /w gray code Output
    • Accuracy: Typical +- 20 feet Maximum +- 50 feet
    • Size: L 6” W 2.65” H 1.3”
    • Weight: 5.1 oz (144 grams)
    • Operating voltage: 10 to 32 VDC
    • Operating current: 60 mA typical
    • Operating temp: -4 to +131° F -20 to +55° C
    • Warm-up current draw: 14VDC 420 mA 28VDC 220 mA
    • Warm-up time: 70° F ambient 60 seconds 0° F ambient 210 seconds
    • Altitude resolution: Gray code (parallel) output 100ft
