Garmin Aera 660 Touchscreen Portable GPS

Part No: 010-01518-00

Shipping calculated at checkout.
Database: North America

Garmin Aera 660

The Garmin Aera 660 is one of the most popular, cost-effective,  and feature-rich purpose-built aviation. It doesn't hurt that it is also portable to take anywhere on the go!

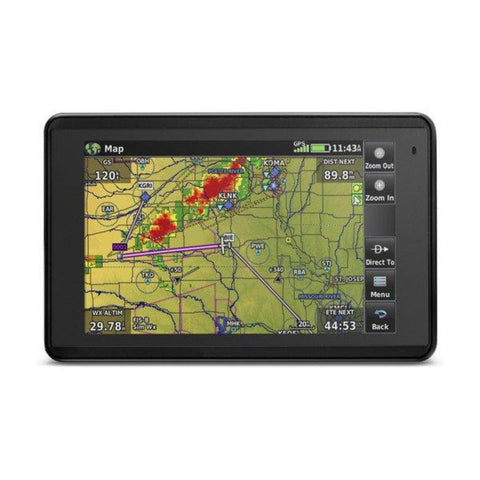

The compact 5-inch capacitive touchscreen boasts a bright, sunlight-readable display complete with rich, interactive maps and a built-in GPS/GLONASS receiver that can be viewed in portrait or landscape modes for optimum customization. The Aera 660 encompasses many of the features of the renowned Aera and GPSMAP aviation portable series, adding new Connext wireless capabilities, Garmin WireAware wire-strike avoidance technology, and more.

Garmin GPS Display Features

New cost-effective database options along with built-in Wi-Fi database updating capabilities allow customers to more easily access the most up-to-date data, including daily U.S. fuel prices. Bluetooth supports the display of ADS-B “In” traffic and weather from a variety of sources, including the GDL 39/GDL 39 3D, Flight Stream, and the GTX 345 ADS-B transponder.

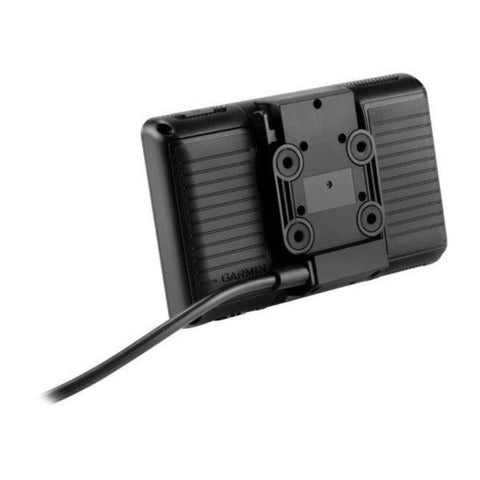

    Garmin Aera 660 Recommended Panel & Yoke Docks (Not Included)

    We recommend this mount for those looking to hide wires on long flights - Airgizmos Garmin Aera 660 Mount

    Other Optional  Powering Dock Compatible with Flight Yokes  -
    Aera 660 Power Cable and Audio Jack Mount

    Bare Wired Dock Compatible with Flight Yokes  -
    Aera 660 Power Cable and Audio Jack Mount

    Advanced Capabilities in a Portable Package

    • Rugged, purpose-built portable navigator with built-in GPS/GLONASS receiver and 5-inch sunlight-readable screen
    • Intuitive, simple touchscreen operation and single power button make getting around the display a cinch
    • 3D Vision perspective view shows terrain, obstacles, airport environment, optional traffic, nearest airport and more
    • Wireless cockpit connectivity via Connext® streams weather and traffic from compatible devices
    • Cut the cord and database prices with Wi-Fi® database downloads and the affordable Garmin Navigation Database

    Awareness in Your Hand

    The aera 660 aviation portable puts the latest Garmin technology in the palm of your hand, and it carries on our tradition of creating innovative navigators that go way back to the beginning of handheld aviation GPS. While aera 660 is light, compact and fits in any flight bag, it’s also packed with capabilities. As a dedicated navigator, it quickly and reliably acquires GPS and GLONASS satellite constellations and combines advanced navigation tools with rich, interactive, dynamically drawn aviation maps. And it displays it all on a bright, sunlight-readable 5-inch diagonal capacitive touchscreen display.

    The icons on the aera 660 are instantly familiar to anyone who’s used a Garmin GTN™ touchscreen GPS/NAV/COMM, G5000® integrated flight deck or even the Garmin Pilot™ app, and the intuitive interface allows you to quickly pan across the map screen, pinch to zoom and more. Meanwhile, the power button on the top accesses quick settings, including portrait or landscape orientation, volume and brightness.

    At a Glance

    Complete Flight Mapping

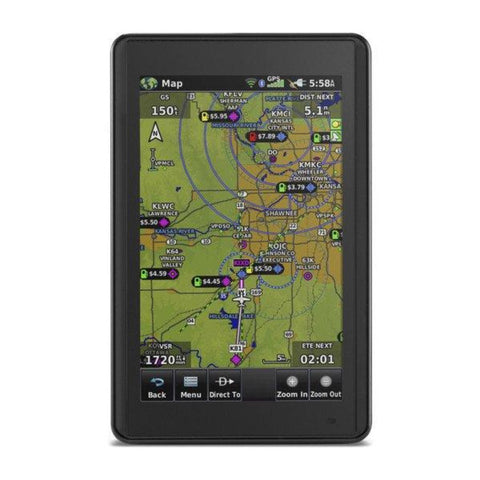

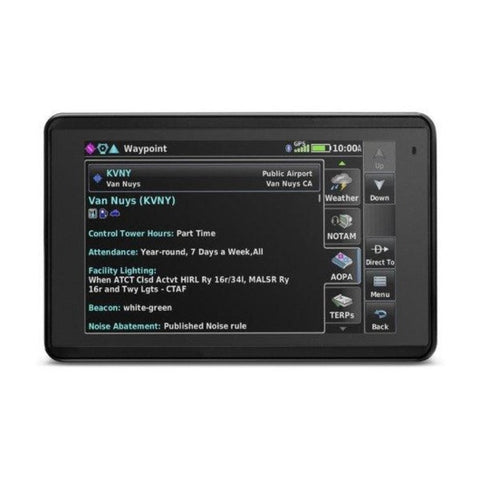

    The aera 660 aviation portable comes preloaded with detailed flight mapping, terrain and obstacles alerting, U.S., European and Canadian SafeTaxi® charts and AOPA Airport Directory or optional AC-U-KWIK global airport directory to put a wealth of resources right at your fingertips — including local fuel prices (U.S. only). The graphical Terrain page offers both overhead and vertical profile views of the topography beneath you. Switch to IFR map mode to display and navigate on high or low enroute airways, and use your touchscreen map cursor to reference MEAs (Minimum Enroute Altitudes) and distances between intersections. The aera 660 even provides vertical navigation (VNAV) guidance to simplify en-route transitions.

    You’ll stay aware of special airspace activity with more than 650 parachute drop zone details (U.S. only) and get 1-touch airspace information. Garmin Smart Airspace™ guidance conveniently highlights the airspace nearest your current altitude and de-emphasizes non-pertinent airspace so you can quickly identify your location relative to the airspace around you. And, of course, the aera 660 includes our signature direct-to and nearest-airport navigation.

    At a Glance

    Connect With Your Panel

    With an optional power/data cable (sold separately), the aera 660 connects with your Garmin avionics to accept flight plans from your GTN 750/650 navigators, as well as upload frequencies to the standby position of your GTR 200 Comm radio, GTR 225 Comm radio or GNC 255 NAV/COMM radio. It also provides your Garmin NAV/COMM radios with the GPS position source required to look up nearest frequencies.

    Weather and Traffic Without Wires

    Using Bluetooth® connectivity via Garmin Connext technology, the aera 660 easily interfaces with compatible devices to cut the clutter in your cockpit and improve your flying experience. With a Garmin GDL® 52 portable ADS-B/SiriusXM® receiver or GTX 345 all-in-one ADS-B transponder, you can access and display ADS-B subscription-free weather¹ and advanced traffic alerts, including TargetTrendTM relative motion tracking and TerminalTrafficTM, so you’re aware of potential conflicts in busy terminal airspace. It even allows wireless control of Garmin VIRB® action cameras to start and stop recording and capture photos.

    At a Glance

    Get 3D Perspective

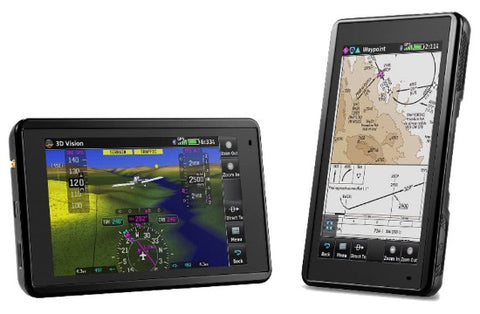

    Revolutionary 3D Vision technology gives you a virtual 3-D behind-the-aircraft perspective view of surrounding terrain derived from GPS/GLONASS and the onboard terrain database. Slide your finger across the touchscreen to rotate the view and show land and water features, obstacles, runways and airport signposts in relative proximity to the aircraft. And when you connect aera 660 to an attitude source through a Flight Stream 210 or Flight Stream 510, a GDL 52 series portable data link or a GTX 345 ADS-B transponder, Garmin SVX synthetic vision and attitude command bars are automatically added to your display.

    Plus, with its forward-looking terrain avoidance capability, the aera 660 predicts in advance where towers or obstacles may exist and shades the landscape with amber or red overlays to indicate those areas. Also, get help flying clear of conflicts with Garmin WireAware™ wire-strike avoidance technology, which graphically overlays Hazardous Obstacle Transmission (HOT) lines that span rivers and canyons right on the moving map page, for the U.S. as well as in some locations in both Canada and Mexico. Touch the wire to display both MSL and AGL heights, and see color-coded obstacle alerting depending on your distance to the hazard. An optional full database that includes all powerlines is also available.

    At a Glance

    Stay Up to Date With Garmin

    With the aera 660, you can cut the cord — and your database prices. You can update databases via Wi-Fi instead of connecting to a computer, and stay current throughout the year with a single, affordable annual subscription that includes all the databases you need, including the Garmin Navigation Database (U.S., Canada, Mexico-version only).

    All-in-one Functionality

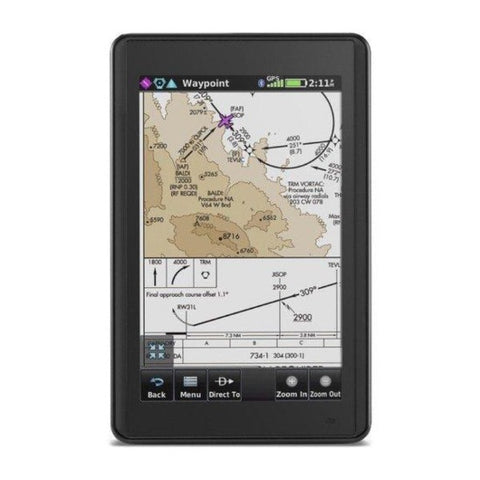

    The aera 660 fulfills the role of either a Class I or Class II electronic flight bag, greatly reducing the need to rely on paper charts in the cockpit. U.S. geo-referenced VFR sectional and IFR enroute charts come preloaded to show your aircraft’s position overlaid directly on the relevant chart, and optional European and Canadian VFR and IFR charts and airport diagrams are also available.

    When in IFR map mode, the aera 660 can display victor airways, jet routes, leg distance and more, similar to traditional enroute charts. Plus, pilots who prefer Jeppesen charts and diagrams can use built-in ChartView capability, which uses Jeppesen’s extensive library to provide global geo-referenced charting capabilities. European users receive European VFR Map enhancements to see even more visual reference points, including borders, lakes, roads, grasslands, parks and more.

    aera 660 Home Dock

    Designed to securely hold your aera 660 for desktop use in your home, office or FBO pilot lounge, this sturdy metal mounting stand works with the USB and power adapter cables provided with your portable navigator – allowing you to to keep your unit charged, while positioning the aera’s touchscreen so you can use it to set up flight plans, review airport information, and perform other key preflight planning tasks, comfortably and conveniently.

    In a Class by Itself

    With its long list of features, the aera 660 combines many of the capabilities of panel-mounted avionics with a value-packed, purpose-built package. It’s a dedicated partner that’s ready to fly, right out of the box.

    ¹ Limited to coverage in the U.S.

    Wi-Fi is a registered trademark of the Wi-Fi Alliance. Bluetooth is owned by the Bluetooth SIG, Inc.

    Pair With ADS-B, Traffic, & Weather

    ADS-B traffic and weather1 can be transferred via the wired connection to the Garmin Aera 660 when linked to the GTX 345, GDL 39 or GDL 39 3D.

    • Rugged, purpose-built portable navigator
    • Built-in GPS/GLONASS receiver
    • 5-inch sunlight-readable screen
    • Intuitive, simple touchscreen operation
    • Single power button make getting around the display a cinch
    • 3D Vision perspective view shows terrain, obstacles, airport environment, optional traffic, nearest airport and more
    • 3D Vision also displays lateral and vertical (VNAV) deviation bars and includes a 360-degree HSI
    • Wireless cockpit connectivity via Connext® streams ADS-B weather and advanced traffic from compatible devices
    • Wi-Fi® database downloads
    • Affordable Garmin Navigation Database
    • Optimized for cockpits and various types of flying
    • Mini-USB connector, microSD card slot and removable battery
    • Depending on settings & connections, pilots will receive up to 4-6 hours of battery life on a single charge
    • Interface resembles the GTN 650/750 touchscreen series
    • Comprehensive chart options provide pilots with an easy path to a paperless cockpit
    • Built in features tailored to helicopter operators, including Garmin WireAware & standard obstacle database contains Hazardous Obstacle Transmission (HOT) lines
    • Standard included accessories:
      • Yoke mount with power cable
      • Battery
      • AC adapter
      • USB cable
      • Quick start manual & documentation
    • Includes:
      • 3D Vision
      • Wireless Database Updating
      • Garmin WireAware
      • Connext
      • TargetTrend (when paired with compatible devices)
      • TerminalTraffic (when paired with compatible devices)
      • Smart Airspace
      • Preloaded Garmin FliteCharts
      • Animated NEXRAD (when paired with compatible devices)
      • SafeTaxi
      • Fuel Prices
      • VIRB XE Control

    Physical & Performance

    • Physical dimensions: 5.5”W x 3.4”H x .8”D (14.1 x 8.7x 2.1 cm)
    • Display size, WxH: 4.35"W x 2.61"H (11.1 x 6.6 cm); 5.08" diag (12.9cm)
    • Display resolution, WxH: 480 x 800; portrait and landscape orientation
    • Display type: touchscreen WVGA color TFT with white backlight
    • Weight: 8.64 ounces (245 g) with battery; 7.23 ounces (205 g) without battery
    • Battery: removable, rechargeable lithium-ion
    • Battery life: Up to 4 hours during most daytime conditions, (80% backlight) and wireless connectivity in the cockpit, e.g. GTX 345; up to 6 hours during typical nighttime conditions, (5% backlight) and without wireless connectivity.
    • SBAS/WAAS/GLONASS receiver: high-sensitivity with WAAS position accuracy
    • Voltage range: 10-35
    • IFR or VFR: VFR
    • Traffic Information Services (TIS) alerts compatible: yes
    • Accepts data cards: yes (microSD™ cards)
