BENDIXKING
AeroPoint 200
Part No: 89000035-001
DESCRIPTION
AeroPoint 200

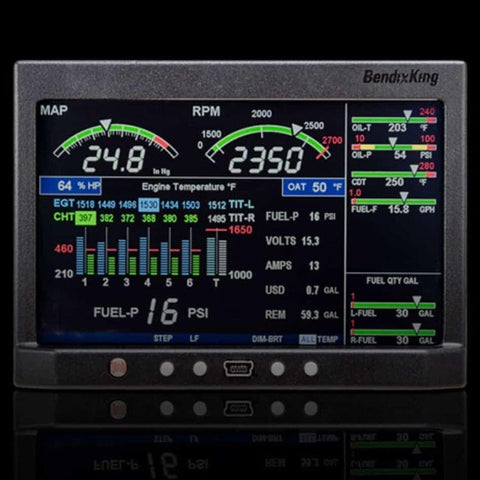

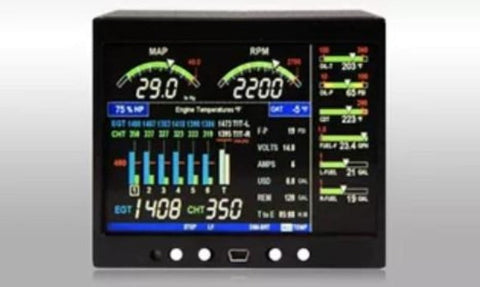

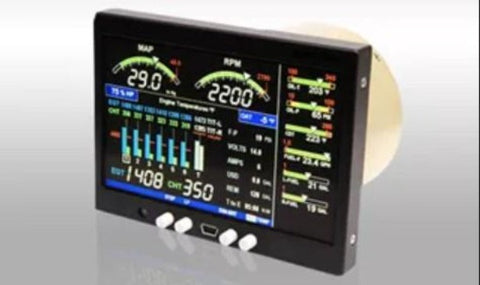

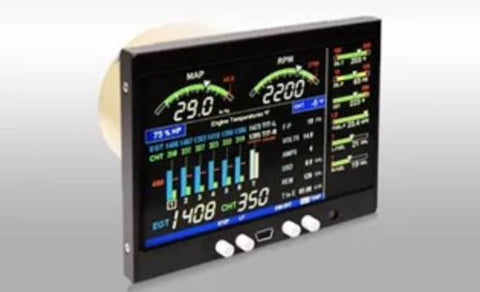

The AeroPoint 200 is an advanced and accurate high-resolution display for engine monitoring. TSO’d as a primary instrument, this replaces many of your old engine gauges, and can be installed in portrait and landscape mode to best utilize your existing panel space. The proven technology acts as an on-board engineer, and displays a menu of critical and informational parameters for a variety of engines and aircraft.
Operates in the background with continuous monitoring during the flight, without any pilot interaction. Warns when any parameter exceeds past the programmed limit. Displays engine data as well as logs maintenance data for a complete engine data management system.
Track flight data from the system directly to evaluate engine health, with an affordable price point. This single primary flight instrument replaces many of the old, outdated engine gauges, freeing up space and weight for other BendixKing upgrades.
Easy-to-mount system can be mounted in either landscape or portrait mode, and is configurable for all of your engine diagnostic and monitoring needs. The extensive standard feature list replaces many of your old engine gauges, and offers the following options: Fuel pressure Carburetor temperature or induction temperature Compressor discharge temperature option Turbine inlet temperature.
Features
Features
- Pre-wired harness for all functions
- RPM
- VGA display
- Manifold air pressure
- Exhaust gas temperature
- Cylinder head temperature
- Outside air temperature (C or F)
- Oil temperature replaces factory sender
- Oil pressure
- Fuel Flow, GPH, FloScan 201 or 231 transducer
- Estimated fuel used
- Estimated time to empty
- Volts
- Amp-1 with 100 amp Shunt
- Percent horsepower
- Data recording of all engine parameters with GPS position
- USB memory stick 1 GB/ Recording
- LOP and ROP algorithm
- Trend charting software
- 3 year warranty
Specifications
- Dimensions 5.11” H x 5.584” W x 3.3” D
- Note add 2” for connectors on depth
- Weight 24 Oz
- Resolution 1°F
- Linearized accuracy 1 degree
- Display 1000 nits
- Voltage 7.5 to 35 volts at ½ amp
Questions & Answers
See below for answers to our most popular questions.
-
does the Aero Point come with the sensors at the price indicated? will it use Cessna resistance fuel quantity senders?
The price listed does include a probe/sender package with wiring harness. Standard Cessna fuel quantity senders can be used with this system.
