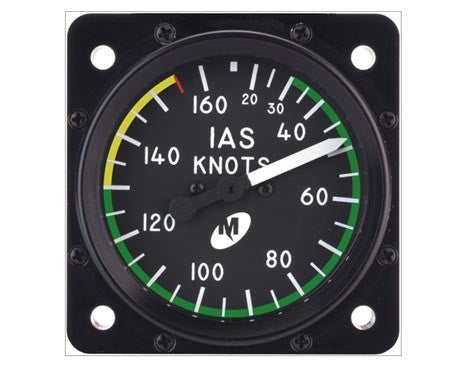

This series of 2” Airspeed Indicators are available with range marking, include internal lighting and can be used as either a primary or back up instrument.
- 160 knots configuration
- Customizable range markings can be added to match aircraft operating handbook
- Affordable, certified 2-inch instrument which can be used as standby or primary indicator
- Combine with a Mid-Continent MD15 Altimeter and 4200 Attitude Indicator for a complete standby package designed for tight panel applications
- Integral long life 5, 14 or 28 volt LED lighting
- Anti-reflective glass enhances visibility and reduces pilot fatigue
- Rear-mounted in standard 2 1/4” cutouts horizontally, vertically or individually
- FAA TSO certified to C4c, C2d and C10b
- Designed and built in Wichita, Kansas, USA
- One-year limited warranty
Certification
FAA TSO certified to C4c, C2d and C10b
RTCA DO-160F
Range Markings
Per customer specifications (optional)
Lighting
Field replaceable light tray available for 5, 14, & 28VDC input
with incandescent bulbs or white LEDs
Weight
0.6 lbs.
Dimensions
2.4 x 2.4 x 3.9 inches
Color
Case: Black
Mounting
Rear mount
Altitude
-15,000 to +50,000 feet
Operating Temperature
-20°C to +55°C
Connections
1/8-27 NPT per MIL-P-7105
FAA TSO certified to C4c, C2d and C10b
RTCA DO-160F
Range Markings
Per customer specifications (optional)
Lighting
Field replaceable light tray available for 5, 14, & 28VDC input
with incandescent bulbs or white LEDs
Weight
0.6 lbs.
Dimensions
2.4 x 2.4 x 3.9 inches
Color
Case: Black
Mounting
Rear mount
Altitude
-15,000 to +50,000 feet
Operating Temperature
-20°C to +55°C
Connections
1/8-27 NPT per MIL-P-7105
