R A MILLER
DESCRIPTION
Antenna, Comm 250 knots

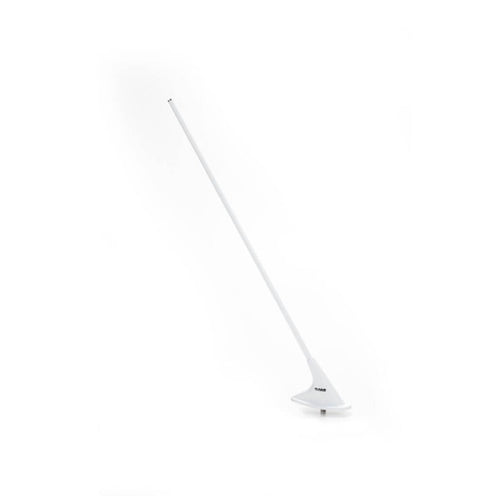

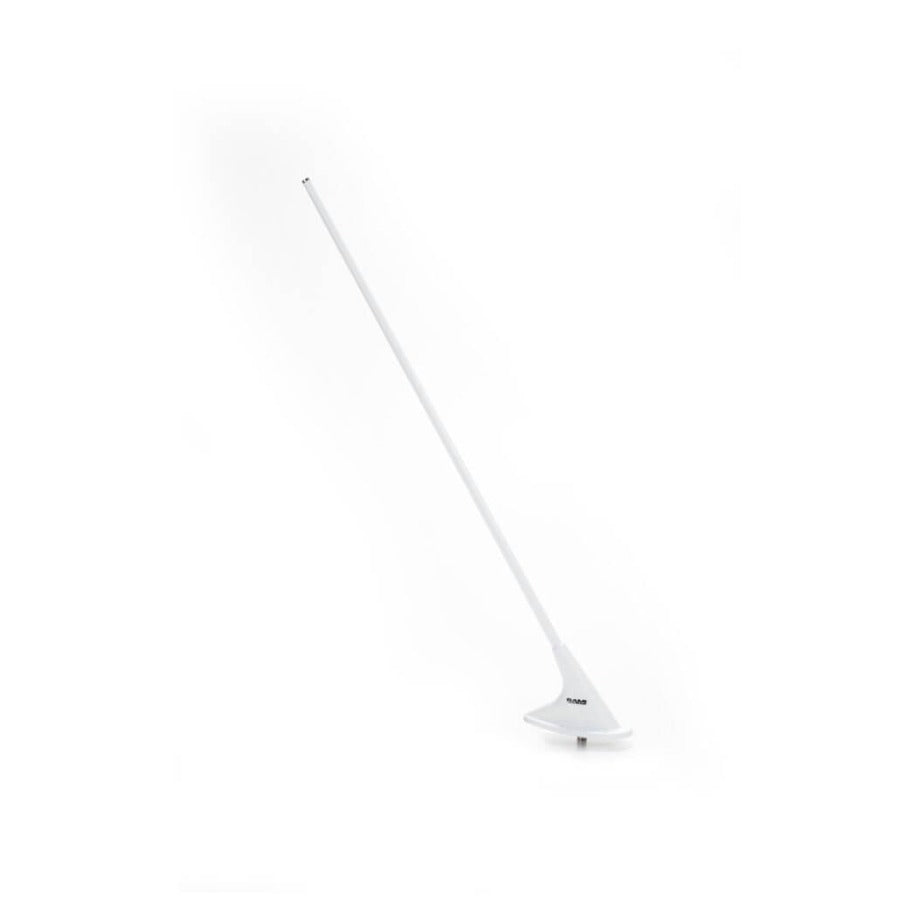

- AV-10 is a communications antenna designed for high-performance aircraft applications
- Exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base.
- Designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lb @ 250 mph.
- Direct replacement for the CI 121
Specifications
| APPLICATION: | Airborne Communications | FREQUENCY: | 118 – 137 MHz |
| IMPEDANCE: | 50 ohms | VSWR: | 2.0:1 Maximum |
| POLARIZATION: | Vertical | PATTERN: | Omni-Directional |
| CONNECTOR: | “BNC” Female | FAA TSO: | C37d, C38d |
| MAX HEIGHT: | 21.56″ | MAX WEIGHT: | 8 oz. |
