R A MILLER

AV-12L

Part No: AV-12L

$315.00 $292.00 Sale
Shipping calculated at checkout.
DESCRIPTION

Antenna, VOR

The AV-12 is a VOR/LOC receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph.

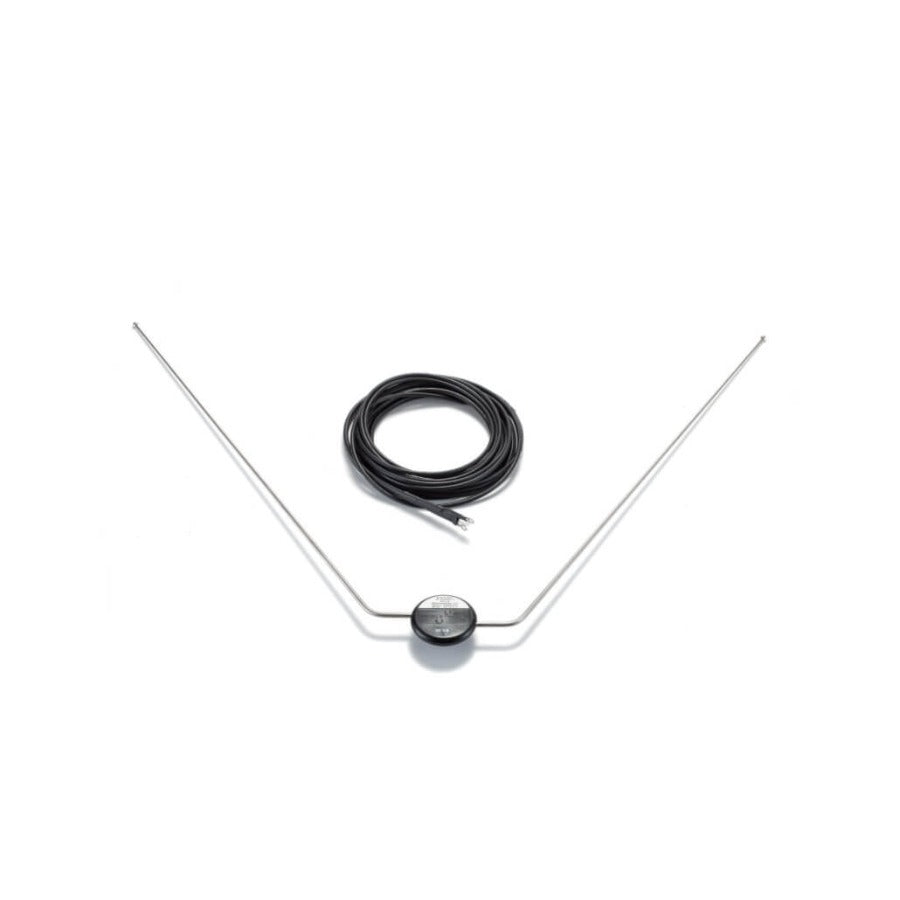

The AV-12L includes all of the same features as the AV-12 and a 25 ft cable with integral balun is also supplied. Order P/N 11-03992 for male BNC connector.
Specifications
Application VOR
Frequency 108-118 MHz
VSWR 2.2 to 1 Maximum
Impedance 50 OHMS
Weight 5.5 oz./with cable 14 oz.
Width across tips 23-1/2"
Connector Type "BNC" Male
RF Power Capability Receive only
Environmental Category D2-AC SXSXDFSXXXXXXXXXX
TSO C40c, DO-160c
