R A MILLER
DESCRIPTION

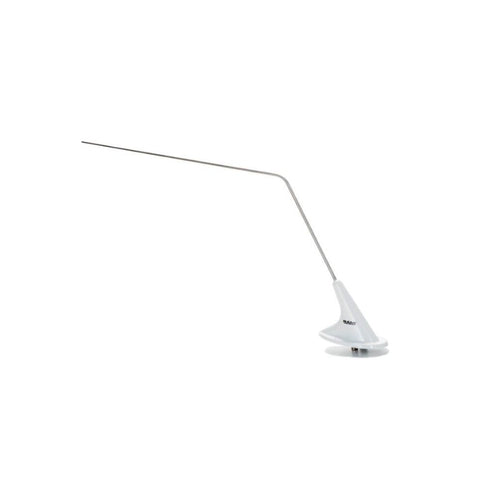

Designed for top mount or belly mount with classic bent whip design. Rated to 350 knots. 118-136.75 mHz.
- AV-570 diplexer splits the signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver
- Diplexer construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft.
- Direct replacement for the CI 507
Specifications
| APPLICATION: | Airborne Communications | FREQUENCY: | 108-118 MHz328-336 MHz |
| IMPEDANCE: | 50 ohms nominal | VSWR: | 1.4:1 Maximum |
| MAX WEIGHT: | 3.5 oz. | FAA TSO | C34e, C36e, C40c |
| CONNECTORS: | (3) “BNC” Female | ISOLATION: | 38 dB Minimum |
| INSERTION LOSS: | 1 dB Maximum |
