uAvionix AV-20

Part No:

Manufacturer: uAvionix

uAvionix AV-20-S

Complement Your Panel with a Certified 12-In-One Display

Transform your panel without sacrificing simplicity. AV-20-S is FAA APPROVED.

Cutting-Edge Technology Without the Cutting

uAvionix AV-20-S multi-display fits in your existing 2” panel slot seamlessly. By mounting from behind, eliminating the need for cutting or replacing your panel.

Customizable Display

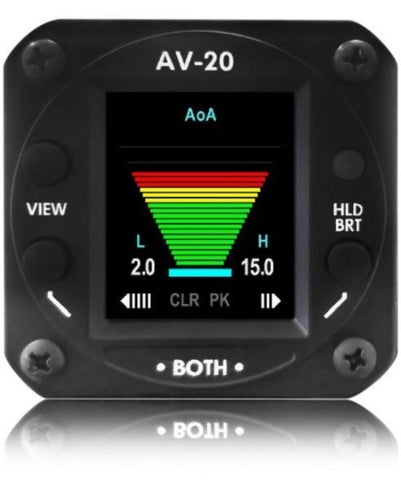

  • AoA Display (Voice Alerting & Peaks)

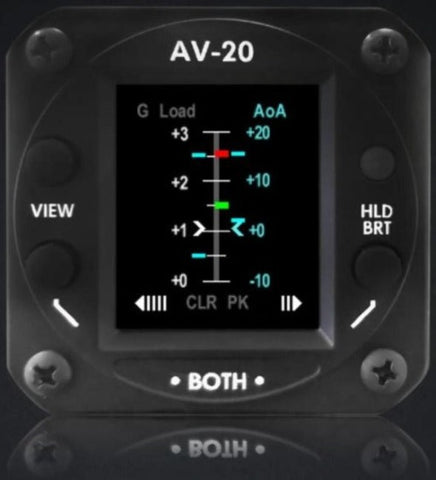

  • G-Meter Display (Voice Alerting & Peaks)

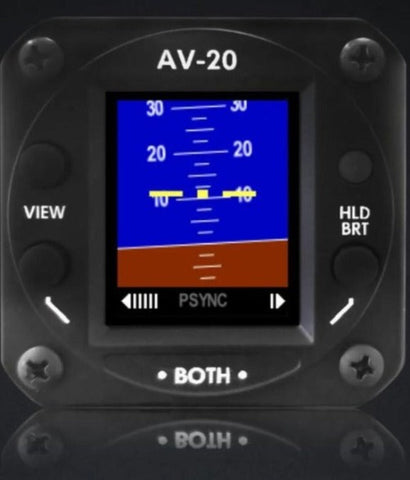

  • Attitude (Roll / Pitch)

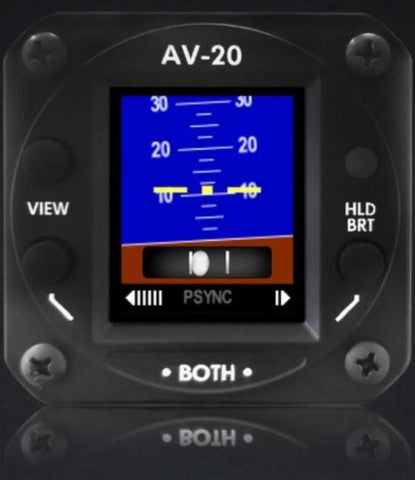

  • Slip / Skid Indication (NEW!)

  • Clock (GMT / Local)

Goodbye Glare

With a matte display, AV-20-S is visible in direct sunlight and automatically adjusts brightness to ambient light.

Eyes On the Sky

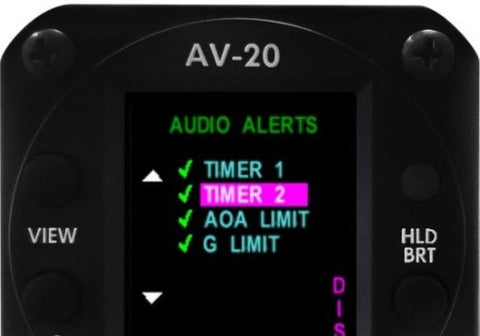

Fly focused and aware with customizable audio alerts. AV-20-S’ many display configurations offer several audio triggers to alert you of critical flight information.

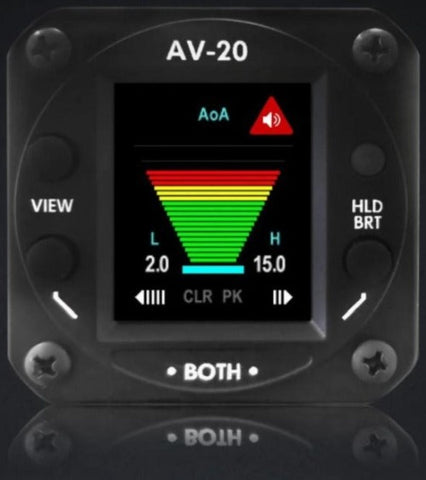

Avoid Stalls

The AV-20-S alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.

uAvionix Installers

We are certified avionics dealers and uAvionics installation specialists. We design custom panels for certified and experimental aircraft. Contact us to speak with an installation expert toll-free at 800-474-9714.

  • AoA Display (Voice Alerting & Peaks)

  • G-Meter Display (Voice Alerting & Peaks)

  • Attitude (Roll / Pitch)

  • Slip / Skid Indication (NEW!)

  • Clock (GMT / Local)

  • Outside Air Temperature (C / F)

  • Bus Voltage Display

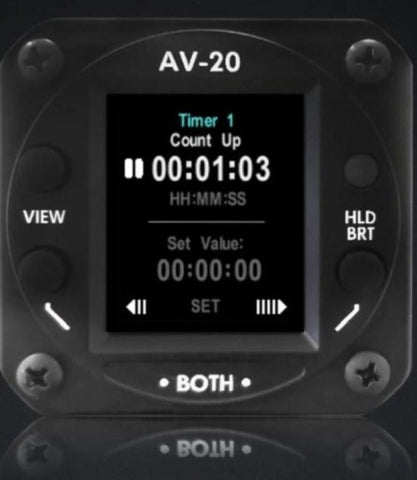

  • Dual User Timers (Count Up / Down)

  • Engine Run Timer

  • Flight Timer

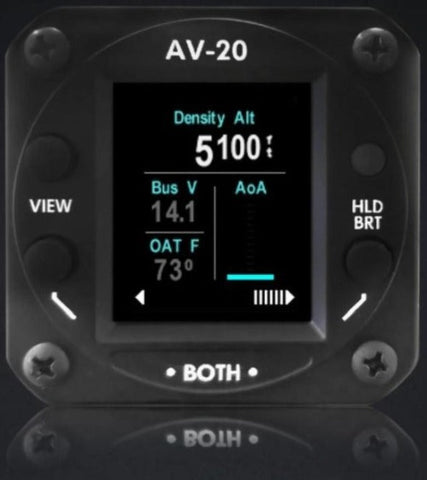

  • Density Altitude Display

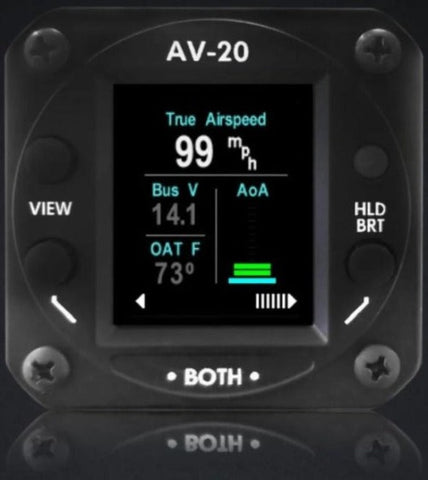

  • True Airspeed Display (Kts / Mph)

  • Internal Battery Operation (30 Min)


  • AV-20-S (with internal backup battery)

  • two 1/4″ quick connect fittings

  • mounting screws

  • wire harness

Input Voltage Nominal

+10 to +32 VDC

Input Voltage Max

+60 VDC

Input Power Nominal

3 Watts (0.25Amps @ 12VDC)

Input Power Max

6 Watts (0.50 Amps @ 12VDC)

Required Circuit Breaker

1 Amp

Operation on Battery

30 Minutes (Standard 15°C Env)

Mounting Configuration

2 ¼” Round Instrument Hole

Dimensions wo/Connector

2.4 x 2.4 x 1.2 Inches


0.25 Lbs.

Electrical Connector

9 Pin Male D-Sub

Pneumatic Connectors

¼” OD Quick Connect


(4X) #6-32 Machine Screws

Case Material

High Impact ABS Plastic

Operating Temp

-20°C to +55°C

Storage Temp (48 Hrs)

-30°C to +80°C (Via Analysis)

Humidity (48 Hrs)

90% RH (Via Analysis)

Diagonal Size


Contrast Ratio (Typical)


Brightness (Typical)

1000 cd/m2

Viewing Angle Left/Right


Viewing Angle Up


Viewing Angle Down


Backlight Lifetime (Typical)

50,000 Hrs

See below for answers to our most popular questions.
