uAvionix
AV-30 Primary Flight Display - Certified
Part No: UAX-90052-01
Shipping calculated at checkout.
DESCRIPTION

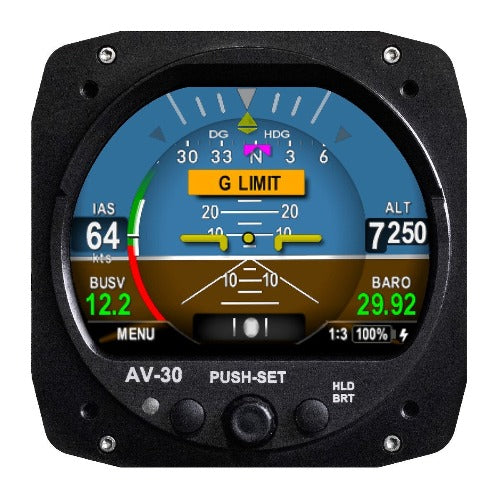

AV-30 Primary Flight Display - Certified
Cutting-Edge Technology Without the Cutting
AV-30 fits in your existing 3” panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel
Avoid Stalls
The AV-30 alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.
Transponder Control
Travel beyond borders with tailBeaconX, the globally accepted, Aireon enabled, 1090/ES ADS-B Transponder. AV-30 paired with tailBeaconX allows you to easily set your mode and squawk while enabling additional functionality to AV-30.
Features
Upgrade your legacy vacuum driven instruments to digital precision attitude and directional gyro customizable displays.
-
Primary Attitude
-
Primary Slip
-
Primary Direction Indication
-
Probeless Angle Of Attack
-
Indicated Airspeed (KTS/MPH)
-
Altitude / Vertical Trend / Alerter
-
+8 / -8 G-Meter
-
OAT / TAS / Density Altitude
-
Bus Voltage
-
GPS Navigational Data Overlay
-
GPS HSI / 360 Rose / Arc Map Mode
-
Customizable Colors, Fonts, & Layout
-
Audio Alerts (AoA, G, Roll Limits)
-
2 Hr Typical Internal Battery Operation
Specifications
|
Specification |
Value |
|---|---|
|
Input Voltage Nominal |
+10 to +32 VDC |
|
Input Voltage Max |
+60 VDC |
|
Input Power Nominal |
6 Watts (0.5 Amps @ 12VDC) |
|
Input Power Max |
12 Watts (1.0 Amps @ 12VDC) |
|
Required Circuit Breaker |
2 Amp |
|
Operation on Battery |
2 Hours Typ @ 20°C / 30 Minutes Min @ -20C |
|
Physical Attributes |
|
|
Mounting Configuration |
3 1/8” Round Instrument Hole |
|

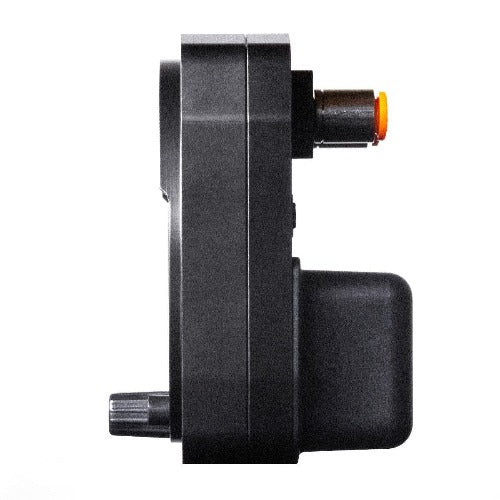

Dimensions wo/Connector |
3.38 x 3.38 x 1.6 Inches |
|
Weight |
0.50 Lbs. |
|

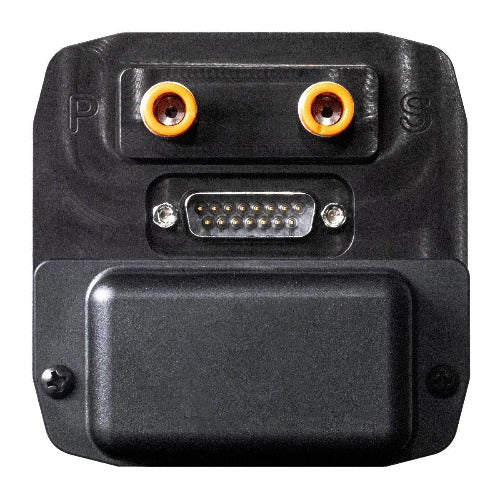

Electrical Connector |
15 Pin Male D-Sub |
|
Pneumatic Connectors |
¼” OD Quick Connect |
|
Mounting |
(4X) #6-32 Machine Screws |
|
Case Material |
Billet Aluminum |
|
Environmental |
|
|
Operating Temp |
-20°C to +55°C |
|
Storage Temp (48 Hrs) |
-30°C to +80°C |
|
Humidity (48 Hrs) |
90% RH |
|
Display |
|
|
Diagonal Size |
3” Circular |
|
Contrast Ratio (Typical) |
500 |
|
Brightness (Typical) |
1000 cd/m2 |
|
Viewing Angle Left/Right |
60° |
|
Viewing Angle Up |
45° |
|
Viewing Angle Down |
10° |
|
Backlight Lifetime (Typical) |
50,000 Hrs |
Questions & Answers
See below for answers to our most popular questions.
-
Will this work with a Century 30 autopilot with altitude hold?
Hello and thank you for your inquiry.
No quite sure what model of autopilot you are referring to with "Century 30'...
A Century would be, for example, a model 'III", however, S-Tec makes an S-30, and only the S-Tec 30 and other S-Tec models listed, in conjunction with the AV-APA for certified A/C is usable with the AV-30C. Altitude hold, however, is not listed under its capabilities.
Our price currently for the AV-APA PMA: $645.00.
- Supported Modes include: GPS Desired Track, GPS Track Hold, GPS Bearing, GPS Steering (GPSS*)
- Supported Autopilots include: S-TEC Systems 20/30/40/50/55/55X/60-1/60-2/
65 - AV-APA PMA Installation Kit includes connectors, connector housings, and pins
Hope this helps!
-
Must I have a gps to operate the AV-30?
The only required interfaces on an AV-30 to make it work would be power & ground wiring along with pitot & static connections. Everything else the AV-30 can interface with is optional.
