uAvionix
AV-30 Primary Flight Display w/ AVLink - Experimental
Part No: UAX-90051-03
DESCRIPTION
uAvionix AV-30 Experimental w/AVLink
Cutting-Edge Technology Without the Cutting
AV-30e fits in your existing 3” panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel, and the AVLink Wifi Hub is now included.
Avoid Stalls
The AV-30e alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.
Transponder Control
Travel beyond borders with tailBeaconX, the globally accepted, Aireon enabled, 1090/ES ADS-B Transponder. AV-30 paired with tailBeaconX allows you to easily set your mode and squawk while enabling additional functionality to AV-30.
Live Traffic on AV-30
Plug-in AV-Link to your AV-30 serial port, connect the AV-Link to your ADS-B receiver via Wi-Fi, and that’s it.
| "Retro-Fit" Your Cockpit with a Digital Upgrade. Upgrade your legacy vacuum-driven instrument to digital precision attitude and directional gyro customizable display. uAvionix offers a downloadable simulator that allows you to directly explore the AV-30 functionality. Windows only. Download Here |
Features
Upgrade your legacy vacuum driven instruments to digital precision attitude and directional gyro customizable displays.
-

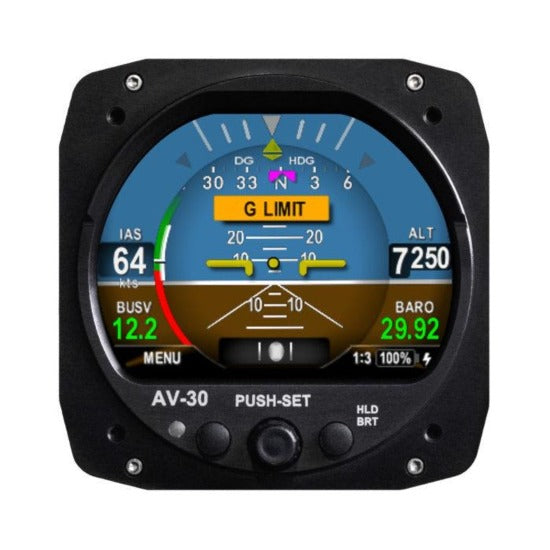

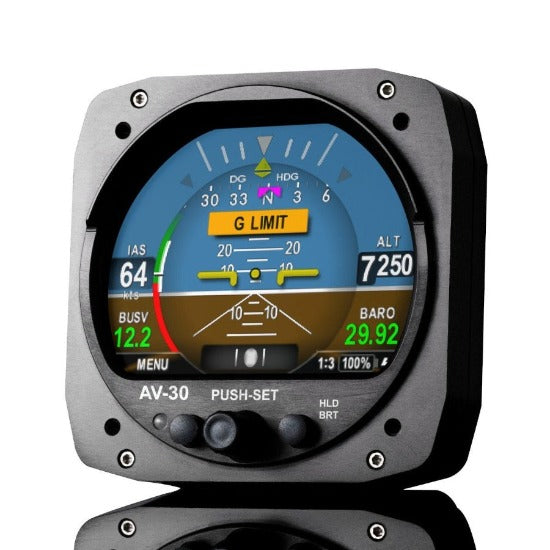

Primary Attitude
-
Primary Slip
-
Primary Direction Indication
-
Probeless Angle Of Attack
-
Indicated Airspeed (KTS/MPH)
-
Altitude / Vertical Trend / Alerter
-
+8 / -8 G-Meter
-
OAT / TAS / Density Altitude
-
Bus Voltage
-
GPS Navigational Data Overlay
-

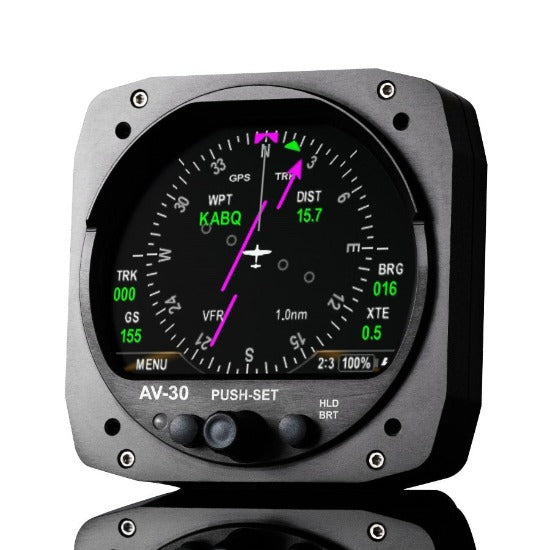

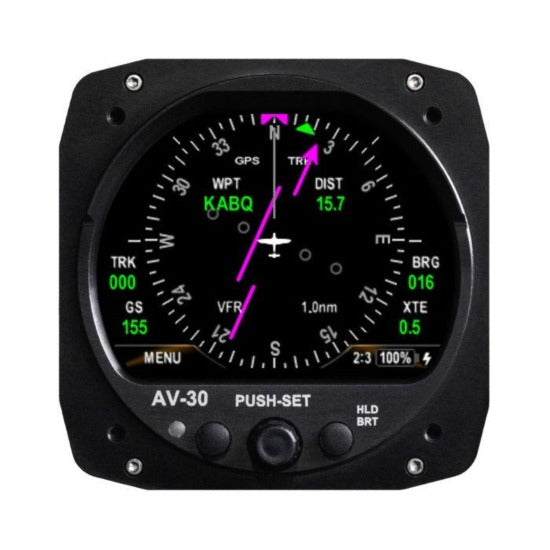

GPS HSI / 360 Rose / Arc Map Mode
-
Customizable Colors, Fonts, & Layout
-
Audio Alerts (AoA, G, Roll Limits)
-
2 Hr Typical Internal Battery Operation
Specifications
|
Specification |
Value |
|---|---|
|
Input Voltage Nominal |
+10 to +32 VDC |
|
Input Voltage Max |
+60 VDC |
|
Input Power Nominal |
6 Watts (0.5 Amps @ 12VDC) |
|
Input Power Max |
12 Watts (1.0 Amps @ 12VDC) |
|
Required Circuit Breaker |
2 Amp |
|
Operation on Battery |
2 Hours Typ @ 20°C / 30 Minutes Min @ -20C |
|
Physical Attributes |
|
|
Mounting Configuration |
3 1/8” Round Instrument Hole |
|
Dimensions wo/Connector |
3.38 x 3.38 x 1.6 Inches |
|
Weight |
0.50 Lbs. |
|

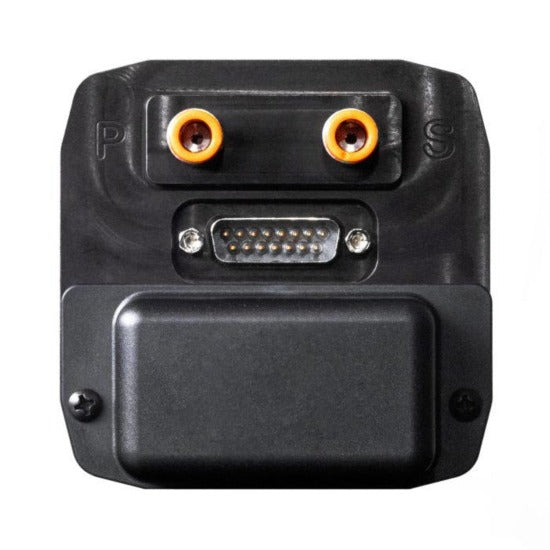

Electrical Connector |
15 Pin Male D-Sub |
|

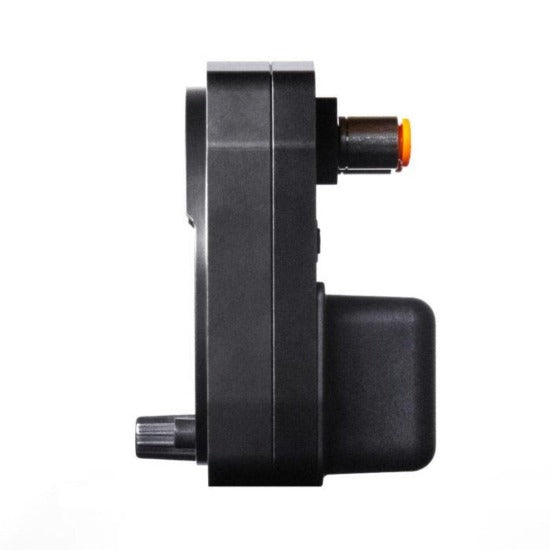

Pneumatic Connectors |
¼” OD Quick Connect |
|
Mounting |
(4X) #6-32 Machine Screws |
|
Case Material |
Billet Aluminum |
|
Environmental |
|
|
Operating Temp |
-20°C to +55°C |
|
Storage Temp (48 Hrs) |
-30°C to +80°C |
|
Humidity (48 Hrs) |
90% RH |
|
Display |
|
|
Diagonal Size |
3” Circular |
|
Contrast Ratio (Typical) |
500 |
|
Brightness (Typical) |
1000 cd/m2 |
|
Viewing Angle Left/Right |
60° |
|
Viewing Angle Up |
45° |
|
Viewing Angle Down |
10° |
|
Backlight Lifetime (Typical) |
50,000 Hrs |
