BendixKing xCruze 100 Digital Autopilot System For Harmon Rocket
Part No: XC100-106
DESCRIPTION
BendixKing xCruze 100 Digital Autopilot System For Harmon Rocket
The xCruze 100 is an affordable and flexible digital autopilot system for the Harmon Rocket. The xCruze 100 provides a seamless integration with the AeroVue Touch EFIS as well as a variety of other manufacturers.

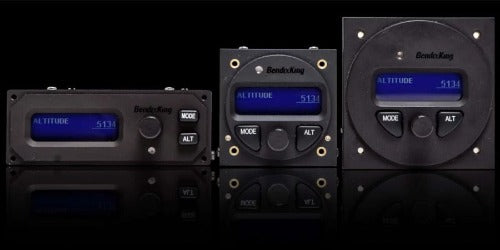

The complete system is offered at a low cost, with the choice of three form-factor variations:

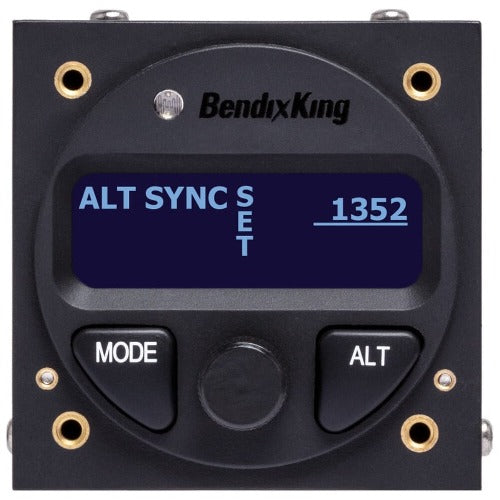

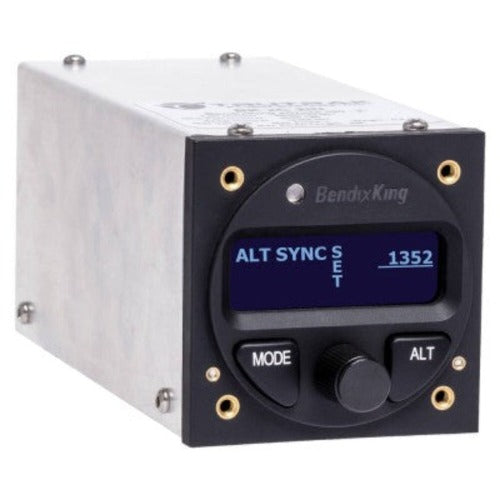

- 2” round

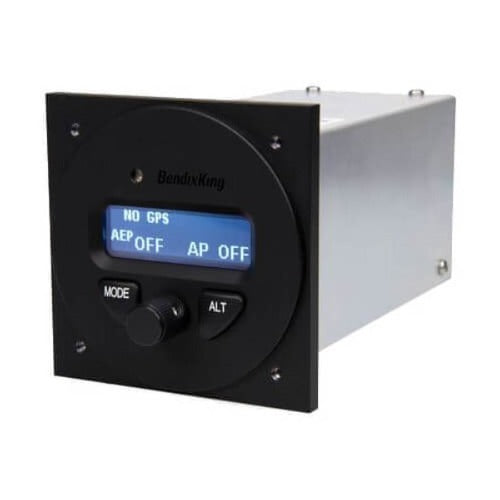

- 3” round

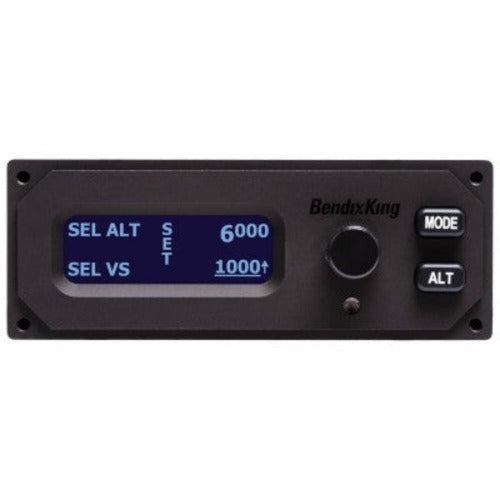

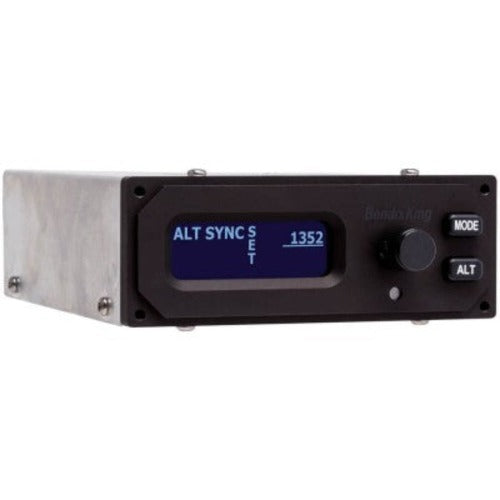

- Flat pack
Powerful and Flexible
Emergency autopilot level button helps to bring the aircraft to a wings-level position. Connects to either hand-held GPS or IFR panel mount GPS systems. When connected to hand-held GPS, follows programmed flight plans. When connected to panel mount GPS, autopilot follows roll steering commands to fly complex flight plans Similar to lane assist in automobiles, the AEP stand-by mode monitors aircraft bank angle. Autopilot corrects the bank angles greater than 45 degrees by automatic roll command.
Standard Features
- Bank Angle Select (if no GPS signal)
- Track Select
- GPS Nav (point to point type flight plans)
- GPSS (roll steering commands)
- Vertical Speed Select
- Altitude Hold
- Altitude Select
- Altitude Pre-Select
- GPSV (LPV Approaches)
- Control Wheel Steering
- Emergency Level
- AEP (Bank Angle Protection Mode)
- Roll Servo
- Pitch Servo
- Install Kit
Specifications
- 2” Round: 2.5” H x 2.5” W x 5.5” D
- 3” Round: 3.25” H x 3.25” W x 5.5” D
- Flat Pack: 1.6” H x 4.3” W x 6.1” D
