C-4 4 Channel CHT

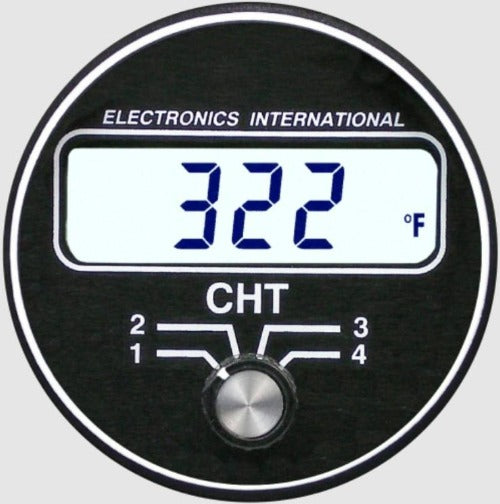

ELECTRONICS INTERNATIONAL C-4 Four-Channel CHT

The C-4 provides pilots with Four Channels of Cylinder Head Temperature readings in a stable, one-degree digital format. The large, crisp LCD is viewable in direct sunlight and is backlit, making it easy to monitor your CHT.

Don’t Need Your Glasses To Read

• Large digital backlit display.

Interpret Your Readings Faster

• The digital display allows for quick trend analysis.

Budget Friendly

• Same precision found in the most advanced analyzers on the market, but won’t break the bank.

Accurate, Dependable & Easy To Use

• LCD sunlight viewable and backlit for night operation.
• Electronics International consistently has been a leader in digital engine instrumentation since 1979.

Included in the package:

• C-4 Instrument
• P-100 CHT Probe x 4
• 8’ Thermocouple Extension Cables x 4
• Overlap Connectors
• Wire Harness
• Installation/Operating Instructions
• STC/AML

4 Channel CHT Specifications:

Unit Size (H x W x D)

• 2.5" x 2.5" x 2.65"

Unit Weight

• 7 oz.

Temperature Channel Weight

• 1.6 oz for each probe & 6' Cable

Power Requirements

• 7.5 to Volts, 1/10 Amp

Display

• Viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.

Accuracy

• 1/2%

Intensity Control

• An intensity control line allows you to control the Backlight intensity.

Probes

• Type K Thermocouple, Ungrounded
