CI 101

CI 101

Part No:

Manufacturer: COMANT

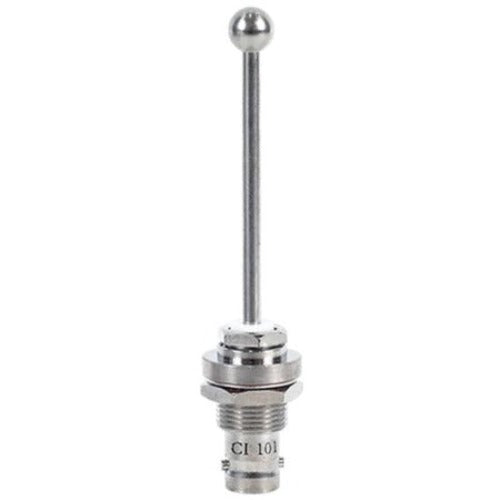

Comant CI 101 Transponder

Transponder antenna with top loaded stub monopole. Antenna radiator is mechanically captivated and is machined from solid brass for impact resistance. Contact points are made from beryllium copper. Metallic parts are plated with bright nickel for corrosion protection. Mounts through a single 0.600” diameter mounting hole. The only model of this type with FAA TSO Authorization.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Applications
Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information

MODEL CI 101 TRANSPONDER

Electrical

Frequency

1030 to 1090 MHz

VSWR

1.5:1 1030 MHz

Polarization

Vertical

Radiation Pattern

Equivalent of 1/ 4 wave stub typical

Impedance RF

50 Ohms

Resistance DC

Open Circuit

Power RF

1.0 KW Peak

Mechanical

Weight

0.06 lb. Maximum

Height

3.33 in. Maximum

Finish

Tin-Nickel Alloy

Environmental

Temperature

-54ºC to +55ºC

Altitude

30,000 ft.

Air Speed

300 Knots TAS

Federal Specification

RTCA Environmental

DO-138

FAA TSO

C74c

RTCA MOPS

DO-144
