COMANT

CI 102

Part No: CI-102

$199.00
Shipping calculated at checkout.
DESCRIPTION

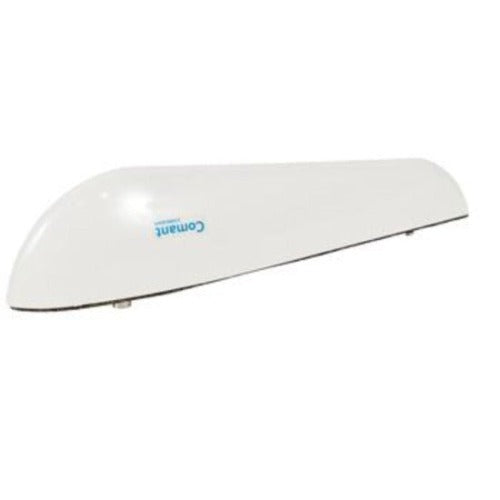

Comant CI 102 Marker Beacon

Frequency 75 MHz Designed for use with the modern, high sensitivity marker beacon receivers. Small and lightweight, featuring 4-hole internal mounting for simple installation. Antenna assembly is enclosed in an injection molded radome which is impervious to the tough environments typical of the underside of an aircraft. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static.

Designed for use with the modern, high sensitivity marker beacon receivers. Small and lightweight, featuring 4-hole internal mounting for simple installation. Antenna assembly is enclosed in an injection molded radome which is impervious to the tough environments typical of the underside of an aircraft. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static.

Frequencies Covered

75 MHz

Applications

Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

Features
• DC grounded to minimize accumulation of precipitation static
• Skydrol and rain erosion resistant
• Designed for single and twin engine piston aircraft
• 4 hole internal mount
• Airspeed 400 Knots
• 75 MHz
• Includes gasket C10208
Specifications

MODEL CI 102 MARKER BEACON

Electrical

Frequency

75 MHz

VSWR

1.5:1 Maximum / Return Loss
-13.98 dB

Polarization

Parallel to mounting plane

Radiation Pattern

E-Field Parallel with Flight
Direction

Impedance RF

50 Ohms

Resistance DC

DC Grounded

Power RF

Receive Only

Mechanical

Weight

0.6 lb. Maximum

Height

2.15 in. Maximum

Finish

Polyurethane Enamel

Material

Molded Radome

Connector

BNC

Environmental

Temperature

-55¨¬C to +85¨¬C

Altitude

45,000 ft.

Air Speed

400 Knots TAS at 25,000 ft.

Federal Specifications

RTCA Environmental

DO-160A

FAA TSO

C35d

RTCA MOPS

DO-138, DO-143
