COMANT
CI 108 Antenna, Comm 600 knots
Part No: CI-108
DESCRIPTION

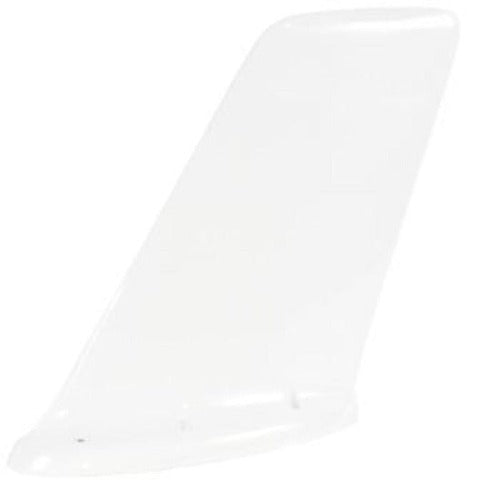

Comant CI 108 VHF Communication
Designed for high-performance aircraft applications suitable for either top or bottom mounting. Solid polyurethane construction for strength, reliability and durability. White polyurethane finish is Skydrol and rain erosion resistant. The 108 series has been re-tested and upgraded to the RTCA DO-160D environmental requirements.
The CI 108-1 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements.
Optional leading edge protection – CI 108-1-L.
Applications
Single and twin engine piston aircraft for applications of this antenna design. Some light turbine and light jets. Consult your FBO or installation shop for best application information.
Features
- VHF communication antenna
- 118 -137 MHz
- Designed for high-performance aircraft applications
- Single and twin engine piston aircraft, some light turbine and light jets
- Suitable for either top or bottom mounting
- Solid Polyurethane construction
- Strong, reliable, and durable
- White polyurethane finish is Skydrol and rain erosion resistant
- Has been re-tested and upgraded to the RTCA DO-160D environmental requirements with DO-186A MOPS
- Optional leading edge protection on CI 108-L model
- Use factory supplied drawings and specifications for installation, refer to FAA AC 43.13-2B for installation guidelines
Specifications
|
MODEL CI 108 VHF BLADE ANTENNA |
|
|
Electrical |
|
|
Frequency |
118-137 MHz |
|
VSWR |
2.5:1 |
|
Polarization |
Vertical |
|
Radiation Pattern |
Omnidirectional |
|
Impedance |
50 Ohms |
|
Power |
25 Watts |
|
Mechanical |
|
|
Weight |
2.5 lb Maximum |
|
Height |
12.0 in. Maximum |
|
Material |
High Density Polyurethane |
|
Finish |
Polyurehtane Enamel |
|
Connector |
BNC (Female) |
|
Environmental |
|
|
Temperature |
-55ºC to + 85ºC |
|
Altitude |
50,000 ft. |
|
Air Speed |
600 Knots TAS @ 35,000 ft. |
|
Federal Specifications |
|
|
RTCA Environmental |
DO-160 |
|
FAA TSO |
C37d, C38d |
|
RTCA MOPS |
DO-186A |
|
Gasket |
|
|
C10810 |
Cork Neoprene - Standard |
