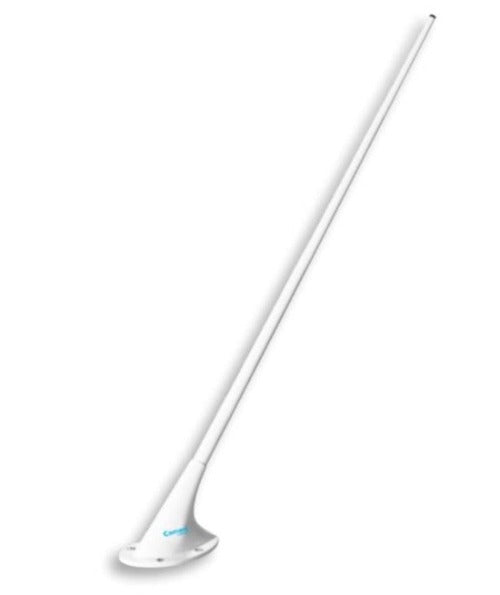

Comant CI 177 FM 2 Meter

Part No: CI-177

$395.00 $410.00
Shipping calculated at checkout.
DESCRIPTION

Comant CI 177 FM 2 Meter

Designed for use over the public service FM Frequency band. Features the popular 4 hole mounting with the radiating element enclosed in a high strength tapered glass laminate housing.

Applications Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information. Frequencies Covered 148-174 MHz.

Frequency • 450-470 MHz

A rugged monopole antenna particularly wellsuited to the harsh environments experienced on the underside of an aircraft. Features standard4-hole mounting, diecast metal base and radiator encased in glass laminate housing.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Features
  • 4 hole mounting with the radiating element enclosed in a high strength tapered glass laminate housing
  • Improved bandwidth provides greater flexibility by optimizing features of some of the newer transceivers
  • Radiating element is enclosed in a high strength
  • Tapered glass laminate housing
  • FM / 2 Meter
  • Frequency · 138-174 MHz
  • Wider band version of the CI-177
Specifications

SPECIFICATIONS

Electrical :

FREQUENCY 138 - 174 MHz
VSWR 2.5:1 Maximum
POLARIZATION Vertical
RADIATION PATTERN Omnidirectional
IMPEDANCE 50 Ohms
POWER RF 50 Watts



Mechanical :

WEIGHT 0.5 lb. Maximum
HEIGHT 15.30 in. Maximum
MATERIAL Die Cast housing / Fiberglass whip
FINISH White Polyurethane Enamel
CONNECTOR BNC (female)
GASKET B12607-3



Environmental :

TEMPERATURE -55°C to +55°C
ALTITUDE 30,000 ft.
AIR SPEED 450 Knots at 25,000 ft.



Federal Specifications :

RTCA ENVIRONMENTAL DO-138
FAA TSO C37b, Class1, C38b
ENVIRONMENTAL CATEGORY BAJXXXXXXXXXXX
