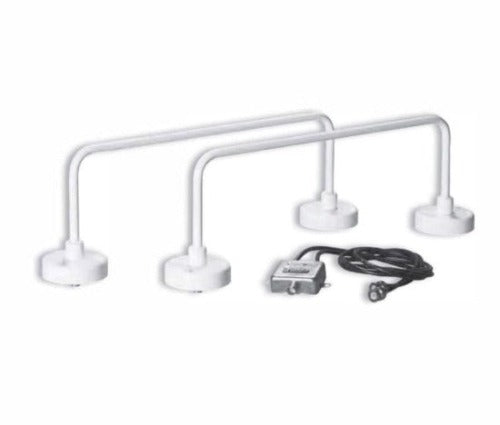

CI 205-3 VOR/LOC/GS VOR/LOC/GS high performance navigation antenna set. Designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. Features low weight/drag, tabular structure to minimize helicopter rotor "down wash" forces. Contains wide band/high efficiency electrical performance and DC grounding for lightning protection. Set includes a pair (2) of "towel bar" sensor elements each with a BNC output connector and a one-piece dual coax interconnect signal combiner harness with single BNC connector output. Provides for a single cable run to the avionics location.

Applications

Consult your FBO or installation shop for best application information. Approved for light helicopter installations.

Frequencies Covered 108-118 MHz (VOR/LOC), 329-335 MHz (GS)

• VOR/GS High Performance Navigation Antenna Set
• Frequency: 108-118 MHz (VOR/LOC) | 329-335 MHz (Glideslope)
• Designed for mounting on the aircraft vertical stabilizer or helicopter tail boom
• Features low weight/drag
• Tubular structure to minimize helicopter rotor "down wash" forces
• Wide band/high frequency electrical performance
• DC grounding for lightning protection
• Set includes 2 "towel bar" sensor elements each with one-piece dual coax interconnect signal combiner harness
• Provides for a single cable routing to the avionics location
• Use the CI-502 coupler for dual VOR operation with NAV1 and NAV2 receivers
• Single or dual VOR/single GS operation is available when used with the CI-507 or CI-505 diplexers respectfully in NAV1 or NAV1 and NAV2 installations
• Use the CI-1125 for dual VOR/dual GS operation
