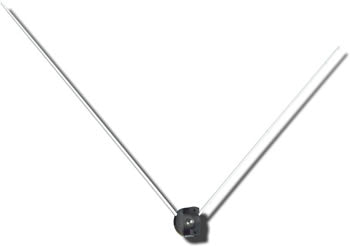

The CI 215 is a "V" Dipole VOR/Glide Slope Antenna with Detachable Elements features two integrally molded mounting legs or "spacers" for increased strength. Interchangeable with the VOR/GS antenna used on most Cessna single-engine aircraft since 1980 including the Cessna 182 and 210 models.
Not approved for helicopter installations.
- Detachable elements
- Integrally molded mounting legs
- Polyester glass laminated radiating elements
- 108 MHz – 118 MHz and 329 MHz – 335 MHz frequencies
- Horizontal polarization
- Dipole radiation pattern
- BNC connector
Weight:
0.6 lb
Height:
16 in, maximum
Frequency:
108 MHz – 118 MHz
329 MHz – 335 MHz
VSWR:
3.0:1 Max. 108-118 MHz (VOR/LOC)
3.0:1 Max. 329-335 MHz (GS)
Polarization:
Horizontal
Radiation pattern:
Dipole
Impedance RF:
50Ω
Power RF:
Receive only
Connector:
BNC female
Temperature:
-55°C to 85°C
Altitude:
50,000
Airspeed:
250 KTAS @ 25,000 ft
Certifications:
FAA TSO - C34c, C36c, C40a
RTCA MOPS - DO-192, DO 195, DO 196
RTCA Environmental - DO-16
