- 108-118 MHz (VOR/LOC), 329-335 MHz (GS) frequencies
- Integral ferrite balun
- Fixed element
- Horizontal polarization
- Dipole radiation pattern

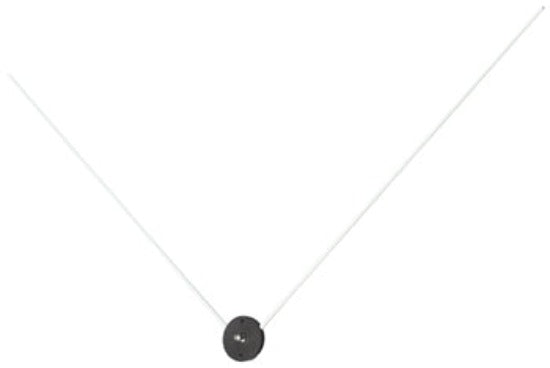

"V" Dipole VOR/Glide Slope Antenna with Fixed Elements is approved for use on helicopter aircraft. Mechanically designed to withstand the severe low frequency vibration environment experienced in typical helicopter installations. Features an integral ferrite balun and fixed element construction.
- 108-118 MHz (VOR/LOC), 329-335 MHz (GS) frequencies
- Integral ferrite balun
- Fixed element
- Horizontal polarization
- Dipole radiation pattern
Weight:
0.35 lb Max.
Height:
16.00 in Max.
Frequency:
108-118 MHz
VSWR:
3.0:1 Maximum
Polarization:
Horizontal
Radiation Pattern:
Dipole
Impedance RF:
50Ω
Power RF:
Receive only
Material:
Delrin Housing / Polyester glass laminate over stainless steel radiators
Finish:Black housing / Stainless steel whips
Connector:BNC (female)
Temperature:
-55°C to +85°C
Altitude:
50,000 ft
Air Speed:
250 Knots TAS
Federal Specifications:
FAA TSO C34e, C36e, C40c
RTCA Environmental DO-160
