COMANT
DESCRIPTION
Comant CI 292-3 FM Extended Band
Designed to provide 3.0:1 VSWR or better over a bandwidth of 138-174 MHz and over 136-174 MHz. Features a high-strength die-cast 3-hole Aluminium base. Radiating element is a bent whip tapered stainless steel rod suitable for bottom mounting.
Frequencies Covered
138-174 MHz

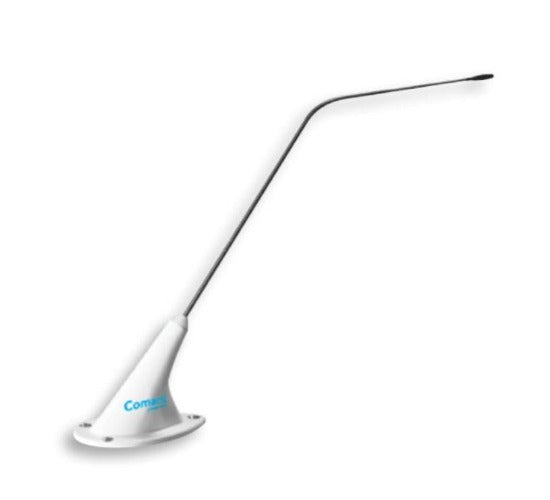

The CI 292-3 FM Extended Band Bent Whip Antenna was designed to provide 2.5:1 VSWR or better over a bandwidth of 138-174 MHz. It features a high-strength die-cast 3-hole aluminum base. The radiating element is a bent-whip tapered stainless steel rod suitable for bottom mounting.
The CI-292-3 has been re-tested and upgraded to the new RTCA DO-160B environmental requirements.
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.
Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.
Features
- Die-cast 3-hole mount aluminum base
- 136-174 MHz & 138-174 MHz bandwidth frequency
- Tapered stainless steel rod
- Bottom Mounting
- FAA TSO C37c (Class 1), C38c
- RTCA Environmental DO-160B
Specifications
Specifications
|
MODEL CI 292-3 FM ANTENNA |
|
|
Electrical |
|
|
Frequency |
138-174 MHz |
|
VSWR |
3.0:1 Maximum |
|
Polarization |
Vertical |
|
Radiation Pattern |
Omnidirectional |
|
Impedance |
50 Ohms |
|
Power |
50 Watts |
|
Mechanical |
|
|
Weight |
0.6 lb. Maximum |
|
Height |
9.5 in. Maximum |
|
Material |
Die Cast Housing/StainlessWhip |
|
Finish |
White Polyurethane Enamel |
|
Connector |
BNC (Female) |
|
Environmental |
|
|
Temperature |
-55ºC to +70ºC |
|
Altitude |
50,000 ft. |
|
Air Speed |
250 Knots TAS |
|
Federal Specification |
|
|
RTCA Environmental |
DO-160D, MOPS: DO-186A |
|
FAA TSO |
C37c, C38c |
