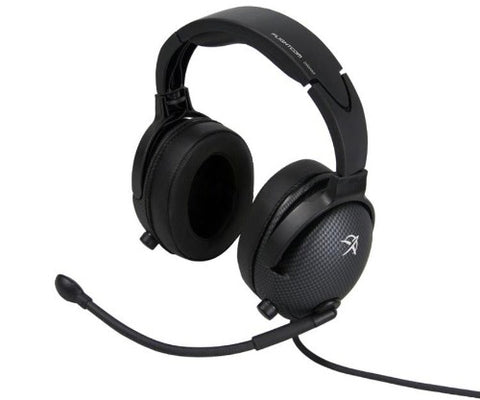

Denali D90ANR Fixed Wing Headset with Dual Inputs
The Denali D90ANR is an extremely lightweight headset that offers exceptional performance and outstanding comfort. The Denali is engineered to fit unlike any other aviation headset, providing excellent passive and active noise attenuation, a secure and comfortable fit and extremely reliable performance..
Flightcom’s Denali is an extremely lightweight headset engineered to offer high reliability, exceptional performance, and outstanding comfort. Weighting only 13.4 oz., Denali is designed to fit unlike any other aviation headset, with unique conformal ComLeather™ ear seals that provide excellent passive noise attenuation. The reliable Twist Flex headband provides a secure and comfortable fit with low side pressure. ANR circuitry achieves additional 18-20dB of active noise reduction at certain key low frequencies to minimize noise fatigue. Uses AA-size batteries for up to 50 hours of continuous ANR use. Includes SPS – a digital power management circuit that conserves battery life by shutting off the ANR circuit when not in use. Also includes dual inputs that support cell pone and auxiliary connections for communication and entertainment. Automatic muting of aux inputs ensures that all incoming transmissions are instantly heard. Comes with a highly padded storage case.
Color: Soft Touch Carbon Fiber Finish
- Active noise reduction technology
- Lightweight 13.4 oz.
- Extra-thick ComLeather ear seals
- Cell phone/MP3 inputs
- High-fidelity stereo speakers
- TwistFlex headband
- 3-year limited warranty
Lightweight Comfort
At less than 14 ounces, this headset is the lightest ANR model available. Denali’s ComLeather™ ear seals help abate noise and offer a comfortable fit. The sleek ear domes stay securely in place, reducing side force.
Dual Inputs
This top-of-the-line model includes dual inputs that support cell phone and Aux connections for communication and entertainment. Automatic muting ensures that all incoming transmissions are instantly heard.
Extended Battery Life
The D90ANR uses two always available AA-size batteries for up to 50 hours of continuous ANR use.
Sure Power System™ (SPS)
This ANR model also has SPS – a digital power management circuit. The SPS conserves battery life by shutting off the ANR circuit when not in use. Full passive performance is maintained when the ANR circuit is off.
Noise Reduction
ANR model achieves additional 18-20dB at certain key low frequencies.
No Risk Warranty
Satisfaction guaranteed from ear to ear. Three year warranty.
HEADSET
- Shielding – Full floating with independent ground
- Weight (ANR) – 13.4 oz.
- Temperature Sensitivity – Not to exceed 156°F
- Battery Life – 50 hours of continuous use
SPEAKERS
- Sensitivity (a1mW in dBspl) – 104dB
- Frequency Response – 90Hz-20kHz
- Impedance – 300 ohms stereo/ch.-150 ohms mono
- Total Harmonic Distortion (@1kHz) – <.15%
- Maximum Power Input – 250mW
- Noise Reduction Rating – 21dB
Microphone
- Type – Noise cancelling electret condenser with constant-gain preamp
- DC Bias Voltage – 8-16 volts
- Supply Source Resistance – 220-2200 ohms
- Frequency Response (±6dB) – 420Hz-6.4kHz
- Sensitivity (@114dBspl*) – 1.3V
- Noise Rejection Ratio (@1kHz): -46dB
- Total Harmonic Distortion (@1kHz) – <0.3%
- Impedance – 500 ohms
- Maximum Speech Level – 112 dBspl*
- Maximum Ambient Noise Level – 132 dBspl*
*Sensitivity measurements referred to 0.0002 ubar (dynes/cm2) @ 1kHz. Microphone measurements made with 10-volt supply with a 1,000 ohm resistor. Contact Flightcom for the most current ANR specifications.
