DYNON AVIONICS

Dynon EMS, FlightDEK, SkyView Engine Sensor Kits

Part No:

$1,125.00
Shipping calculated at checkout.
Style: Lycoming/Continental/Superior 4-Cyl Carbureted
DESCRIPTION

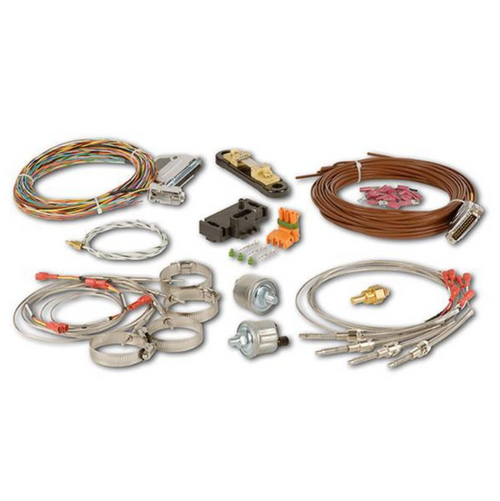

Engine sensor kits for Dynon EMS, FlightDEK and SkyView systems. Kits are shown below with the appropriate sensors and harnesses provided.

EMSKIT-L6C

  • 6 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 6 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 1 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100468-000, Carburetor Air Temperature, ¼-28 UNF, -50° to 150°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-002, EGT/CHT, 6 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-L6F

  • 6 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 6 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 2 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-002, EGT/CHT, 6 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-L4C

  • 4 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 4 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 2 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-001, EGT/CHT, 4 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-L4F

  • 4 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 4 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 2 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-001, EGT/CHT, 4 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-RTX

  • 2 x 100405-001, EGT, 0.75-1.25” Hose Clamp
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-004, EGT, 2 cylinder, 6’ long
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-RTXiS

  • 1 x 103757-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-J22

  • 4 x 100405-002, EGT, 1.00-1.75” Hose Clamp
  • 4 x 100578-000, CHT, Ring Terminal, 12 mm
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-001, EGT/CHT, 4 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-J33

  • 6 x 100405-002, EGT, 1.00-1.75” Hose Clamp
  • 6 x 100578-000, CHT, Ring Terminal, 12 mm
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-002, EGT/CHT, 6 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long
