EAC-1

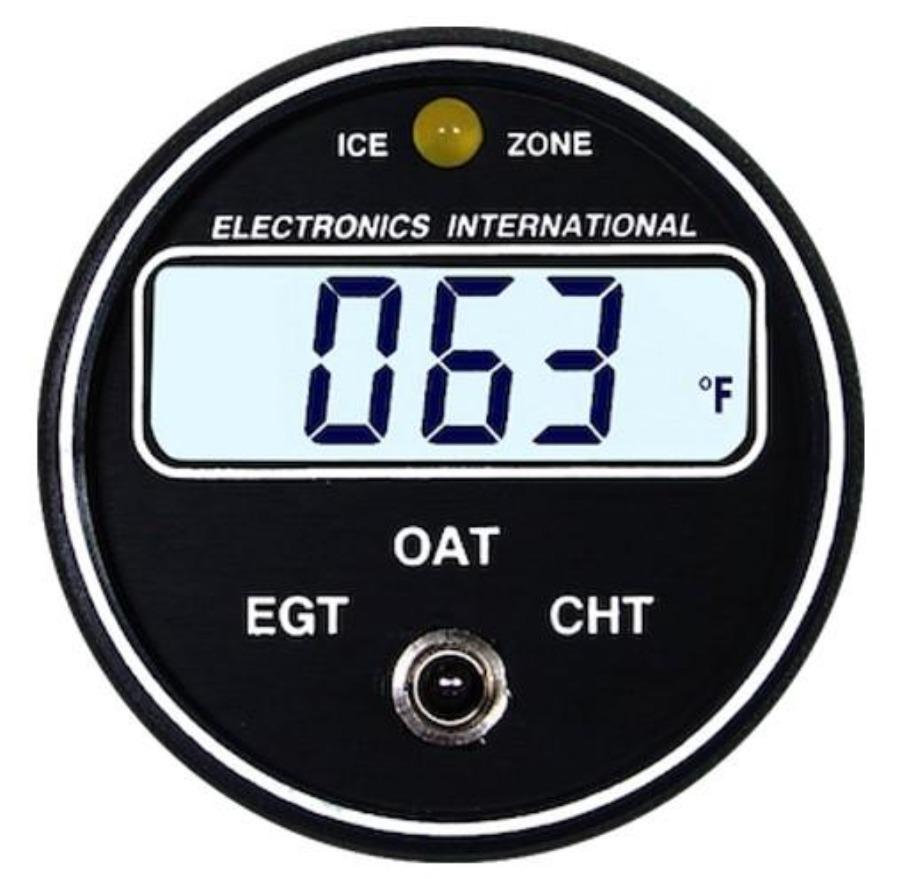

ELECTRONICS INTERNATIONAL EAC-1

Electronics International EAC-1 provides the budget-conscious pilot the option to monitor their Exhaust Gast Temperature, Cylinder Head Temperature and Outside Air Temperature with the same precision found in the most advanced analyzers on the market, while not breaking the bank.

The EAC-1 provides pilots with One Channel of EGT, One Channel of CHT, and One Channel of OAT readings in a stable, one-degree digital format. With a toggle switch, select which temperature you would like to monitor. The large, crisp LCD is viewable in direct sunlight, and is backlit, making it easy to monitor your EGT, CHT, and OAT.

EAC-1 Specifications:

Size (H x W x D)

2.5" x 2.5 " x 2.65"

Weight - Instrument

7 oz.

Weight - Channel

2 oz for a Temperature Probe & XS-6' Cable

Power Requirements

7.5 to Volts, 1/10 Amp

Display

Viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.

Accuracy

1/2%

Intensity Control

An external control line allows you to control the Backlight intensity.

Probes

Type K Thermocouple, Ungrounded
