ASPEN AVIONICS

EFD1000 MFD

Part No: MFD1000

Call for price

Shipping calculated at checkout.
DESCRIPTION

Your Glass Cockpit, Doubled.

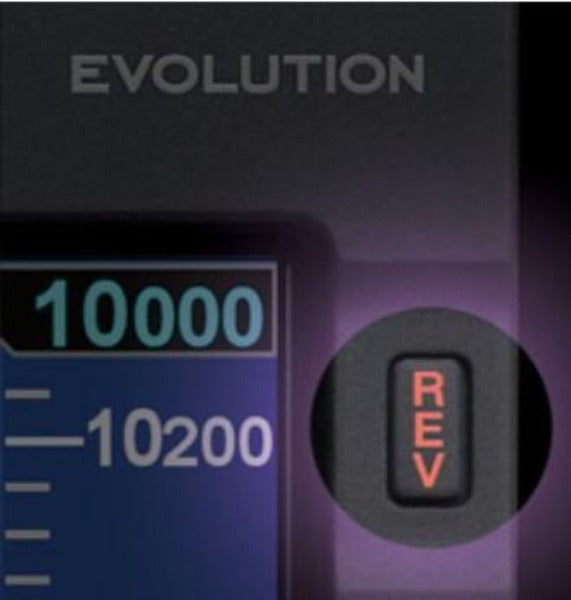

The Evolution 1000 MFD (Multi-Function Flight Display) added to your Aspen PFD doubles your display area and provides flexible display of maps, weather, traffic, charts, airport diagrams. The 1000 MFD comes standard with built-in terrain awareness and provides full PFD redundancy, duplicating all critical sensors and systems. The 1000 MFD can instantly become a fully-functional backup PFD if your Pro PFD should deteriorate or fail.

MFD Versatility, Full PFD Backup, Twice the Display Area

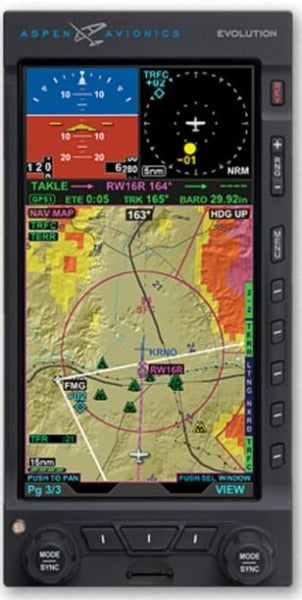

Adding an Evolution 1000 MFD (Multi-Function Flight Display) to your Aspen PFD doubles your display area — providing flexible display of moving maps, datalink weather, traffic, charts and geo-referenced airport diagrams, built-in terrain awareness, and much more.

Built on the same platform as the 1000 Pro PFD, the 1000 MFD provides full PFD redundancy, duplicating all critical sensors and systems. The 1000 MFD can instantly become a fully-functional backup PFD if your Pro PFD should deteriorate or fail.

Features

Evolution 1000 MFD Features:

Duplicate sensor set providing full PFD redundancy

May eliminate requirement for backup instruments

Sectional-style moving maps with hazard awareness overlays

Charts and geo-referenced airport diagrams(1)

Customizable screen layouts

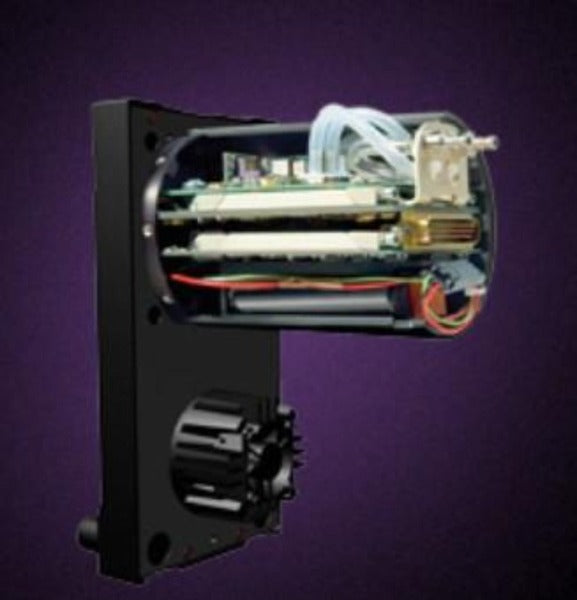

Built-in backup battery and emergency GPS(2)

Evolution Hazard Awareness

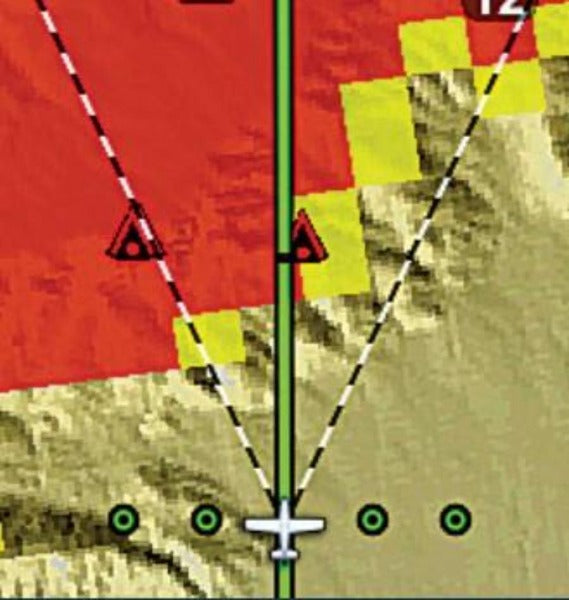

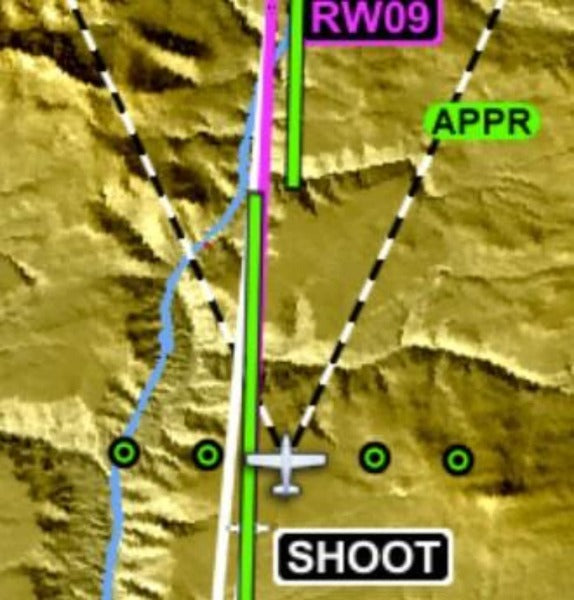

Built-in terrain awareness

Traffic overlay on map via interface(3)

Weather

WX500 Stormscope interface

Datalink weather(4)

Hi-res NEXRAD radar

AIRMETs

Radar coverage map

SIGMETs

Precipitation type (at surface) TFRs

Echo tops Storm weather tracks

Cloud tops Lightning

Winds aloft (by altitude) METARs

Satellite mosaic (by altitude)

TAFs

Specifications

General Specifications:

Overall Dimensions:   3.50” W x 7.00”H x 4.15”D
Weight:  2.9 lbs. with mounting bracket
Display Type:   6.0” Diagonal TFT Active Matrix LCD
Display Resolution:   400x760
Display Backlight:   High Intensity White LED
Display Colors:   32,768

Operational Specifications:

Operating Temp   -20°C to +55°C
Storage Temp   -55°C to +85°C
Max Operating Altitude (unpress.)   35,000 ft.
Cooling   Integral Fan
Max Humidity   95% at 50°C
Input Voltage   +8 to +32 Volts DC
Max Current   2.4 Amps @ 28 Vdc  /  4.8 Amps @ 14 Vdc

I/O Specifications:

ARINC 429 Inputs   5 Low Speed
ARINC 429 Outputs   1 Low Speed
RS-232 Inputs   5
RS-232 Outputs   3
Pitot / Static   Quick Connect

Certification Specifications:

FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software
RTCA DO-178B Level C

Environmental
RTCA DO-160E
