ASPEN AVIONICS

Evolution 2000 Package

Part No: EVOLUTION 2000 PACKAGE

Call for price

Shipping calculated at checkout.
DESCRIPTION

Evolution 2000 Package

**From $20,395 installed. This unit must be installed by Pacific Coast Avionics.

Safer by Design

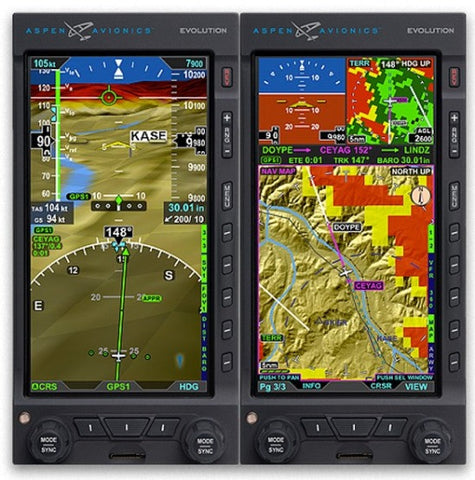

The Evolution™ 2000 MAX combines the powerful, award-winning Pro MAX Primary Flight Display (PFD) and the MFD1000 MAX Multi-function Display (MFD) to provide a system with MFD versatility and twice the safety and redundancy.

Evolution 2000 MAX
MFD Versatility With Full PFD Backup

Clean up your panel and remove vacuum system and backups.

The Evolution™ 2000 MAX combines the powerful, award-winning Pro MAX Primary Flight Display (PFD) and the MFD1000 MAX Multi-function Display (MFD) to provide a system with MFD versatility and twice the safety and redundancy.

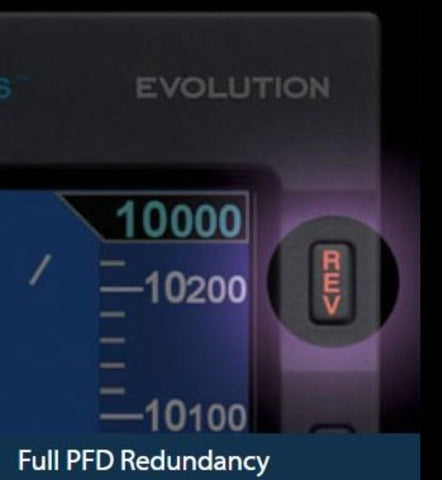

The Pro MAX PFD and MFD1000 MAX provide the safety and confidence of PFD redundancy. If your PFD fails, simply press the REV button on the 1000 MFD and it becomes the PFD – converting into an identical backup right in your primary instrument scan. This PFD backup means less stress and potential confusion in a pressure situation. No other GA glass cockpit system gives you this level of redundancy and confidence at any price.

Aspen makes the total glass cockpit experience both easy-to-use and affordable with patented retrofit technology and superior compatibility for substantially lower installation costs and total cost of ownership.

Evolution 2000 MAX – exceptional versatility, unmatched redundancy.


Five reasons why MAX is the best buy:

  • Reduces cockpit clutter

  • Evolution 2000 system with extended duration internal battery allows removal of your backups along with vacuum system

  • Vibrant aviation glass with the latest generation of processors

  • Simple and affordable MAX upgrade path for legacy Aspen displays

  • New-two year manufacturer's warranty

For Aspen customers old and new, your investment retains it value and never be obsolete.

Features

Evolution 2000 MAX Features:

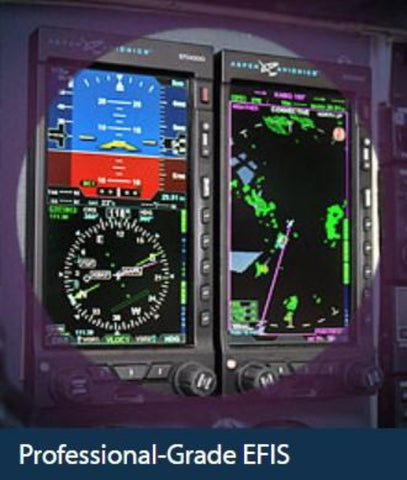

Advanced EFIS six-pack replacement

Pro MAX PFD/MFD redundancy backs up all critical sensors and systems

Twice the display area for enhanced situational awareness

Built-in backup battery and emergency GPS

New, vibrant colors with the latest aviation glass

Higher reliability and faster refresh rates with the latest generation processors

Brilliant, direct sunlight-readable, 6-inch 760x400 TFT active matrix LCD display capable of displaying over 30 million colors (140 pixels/inch)

Photo-quality moving maps and crisp, clear text

Terrain, traffic, maps and weather

ADS-B In weather and traffic1

Audio panel interface

Fully expandable and software upgradable – when new technology becomes available no need for unit replacement

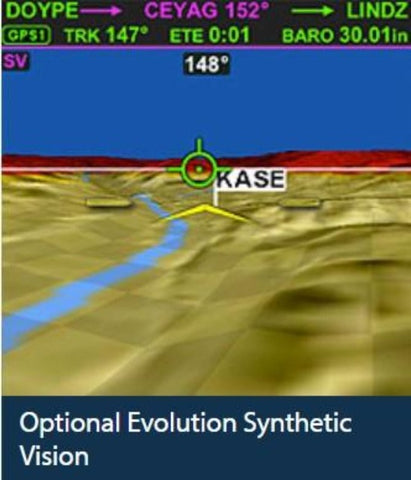

Optional Evolution Synthetic Vision and Angle of Attack

Works with your existing avionics with broadest autopilot/flight director integration

Lightest weight with easy system installation

Award-winning customer service

No-nonsense warranty

1 with compatible ADS-B transceiver, receiver or transponder

Pro MAX PFD Features:

GPS-aided AHRS in the event of pitot static failure

Font and window enlargement capable

Airspeed and altitude tapes

Altitude alerter (and separate approach minimums alerting)

Full electronic HSI with dual bearing pointers

Base map with flight plan legs and waypoints, curved flight paths,1 and nearby navaids

Built-in GPS steering1

Display of real-time winds aloft, OAT, TAS, and ground speed1

Integral Air Data Computer and Attitude Heading Reference System (AHRS)

MFD1000 MAX Features:

Duplicate sensor set providing PFD redundancy on MFD if PFD fails

Allows removal of redundant mechanical backup instruments

Secondary HSI

Chart and countdown timers

Height above ground level (AGL) on navigation and terrain maps

METAR flags on navigation map

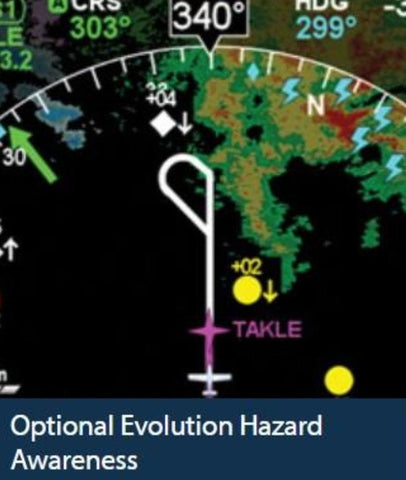

High resolution moving maps with hazard display overlays

ADS-B traffic and weather2

Customizable screen layouts

Font enlargement

Charts and geo-referenced airport diagrams

(1) With compatible GPS navigators.
(2) With compatible ADS-B transceiver, receiver or transponder.

Specifications

General Specifications (per EFD):

Overall Dimensions   3.50” W x 7.00”H x 4.15”D
Weight   2.9 lbs. with mounting bracket
Display Type   6.0” Diagonal TFT Active Matrix LCD
Display Resolution   400x760
Display Backlight   High Intensity White LED
Display Colors   30 Millon Colors(140 pixel/inch)

Operational Specifications:

Operating Temp   -20°C to +55°C
Storage Temp   -55°C to +85°C
Max Operating Altitude (unpress.)   35,000 ft.
Cooling   Integral Fan
Max Humidity   95% at 50°C
Input Voltage   +8 to +32 Volts DC
Max Current   2.4 Amps @ 28 Vdc  /  4.8 Amps @ 14 Vdc

I/O Specifications:

ARINC 429 Inputs   5 Low Speed
ARINC 429 Outputs   1 Low Speed
RS-232 Inputs   5
RS-232 Outputs   3
Pitot / Static   Quick Connect

Certification Specifications:

Software
RTCA DO-178B Level C

Environmental
RTCA DO-160E

Categories
See Environmental Qualification Sheet
