Weight:
420 g

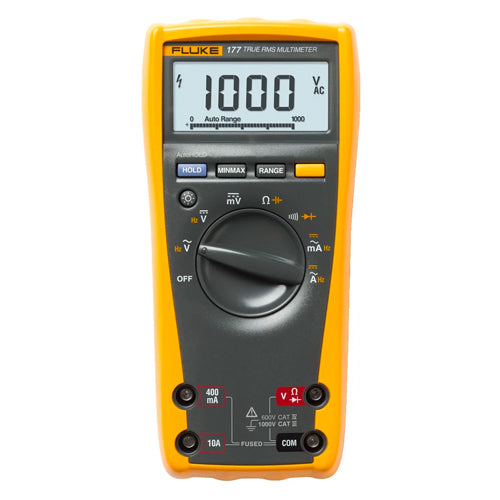

With its precision, reliability, and ease of use, the Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems.
With the Fluke 177 Digital Multimeter users get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with analog bar graph and backlight. Plus a limited lifetime warranty.
Includes:
Installed 9V battery, test leads, users manual
Features:
- Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
- Measures AC and DC voltage to 1000 V
- Delivers accurate True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
- Safety rated CAT III 1000 V, CAT IV 600 V
- Digital display with backlight for working in dim lighting
- Allows closed case calibration through front panel
- Features an ergonomic case with integrated protective holster
- Comes with a limited lifetime warranty
Dimensions:
43 x 90 x 185 mm
Battery life:
Alkaline ~200 hours typical, without backlight
Operating temperature:
-10°C to +50°C
Storage temperature:
-30°C to +60°C
Humidity (without condensation):
0% – 90% (0°C – 35°C)
0% – 70% (35°C – 50°C)
Overvoltage category:
EN 61010–1 to 1000 V CAT III
EN 61010–1 to 600 V CAT IV
Agency approvals:
UL, CSA, TÜV listed and VDE Pending
Warranty:
Lifetime
