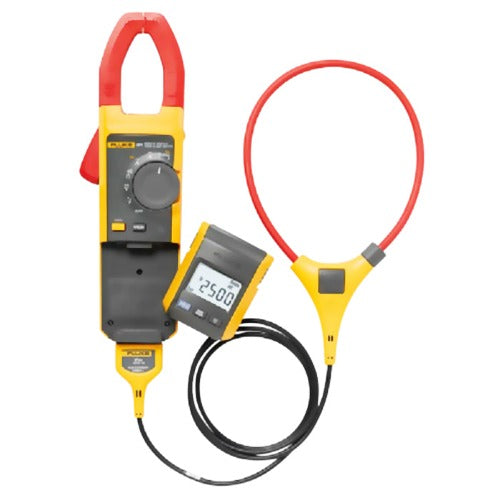

Fluke 381 Remote Display True RMS AC/DC Clamp Meter | includes iFlex & Calibration Certicate

Part No:

$963.00
Shipping calculated at checkout.
DESCRIPTION

Fluke 381 Remote Display True RMS AC/DC Clamp Meter | includes iFlex & Calibration Certicate

The Fluke 381 Remote Display True RMS AC/DC Meter with iFlex provides technicians to preform the jobs that would otherwise require two people. Simply clamp the Fluke 381 around the conductor, then operate controls across the room while watching reading in real-time. The included iFlex current probe expands the measurement range to 2,500 amp AC while providing increased display flexibility. The six-foot cable allows users to measure in tight spaces.


This True RMS AC/DC meter (EDMO# FLUKE 381) includes 381 remote clamp meter, TL75 test lead (1 pair), AC175 alligator clips (1 pair), 18-inch iFlex® current probe, and soft carrying case.

Features
  • Wireless display allows viewing up to30 feet away
  • Removable magnetic display can be conveniently mounting mostly anywhere
  • iFlex® Flexible Current Probe expands mearsurement range to 2,500A AC
  • CAT IV 600V, CAT III 1,000V
  • Integrated low pass filter and signal processing provides stable reading in noisy environments
  • Proprietary inrush measurement technology filter out noise and captures motor starting exactly as teh circuit protection sees it
  • Ergonomic design
  • Radio transmitter automatically sets the correct measurement range

Weight:
350 grams

Dimensions:
277 x 88 x 43 mm

Jaw Opening:
34 mm

Temperature:
-10°C to 50°C, operating
-40°C to 60°C, storage

Operating Altitude:
2,000 meters

AC Current:
Range: 999.9 amps (via jaw)
999.9 A / 2500 A (45 Hz – 500 Hz), via Flexible Current Probe

DC Current:
999.9 amps

AC Voltage:
600 V / 1,000 V

DC Voltage:
600 V / 1,000 V

Resistance:
600Ω / 6kΩ / 60kΩ

Specifications


Weight:
350 grams

Dimensions:
277 x 88 x 43 mm

Jaw Opening:
34 mm

Temperature:
-10°C to 50°C, operating
-40°C to 60°C, storage

Operating Altitude:
2,000 meters

AC Current:
Range: 999.9 amps (via jaw)
999.9 A / 2500 A (45 Hz – 500 Hz), via Flexible Current Probe

DC Current:
999.9 amps

AC Voltage:
600 V / 1,000 V

DC Voltage:
600 V / 1,000 V

Resistance:
600Ω / 6kΩ / 60kΩ
