The new Garmin G500 TXi has multiple variations and options available. Please call one of our avionics specialists to assemble the system that best fits you and your aircraft.
Touchscreen Flight Displays for General Aviation Aircraft
- Bright, crisp 10.6” and 7” LCD touchscreen displays offer industry-leading scalability and flexibility in a wide range of panel configurations
- Engine indication system (EIS) optionally available on 7” displays or 10.6” display with split-screen data strip
- HSI mapping enhances situational awareness with MFD-like geographical map detail, weather, traffic display and more — overlaid within HSI portion of the primary flight display (PFD)
- Interfaces with popular avionics and autopilots, offering full touchscreen system continuity with our GTN™ and GTN Xi series¹
- Full compatibility with original G500 system sensors for a simplified, cost-effective upgrade path
It’s a clean-sheet touchscreen design — one that builds on the proven capabilities of our original G500 glass flight display series to offer you a vastly expanded array of features, options and panel layout possibilities. Backed by our No. 1-ranked product support team, the next-generation G500 TXi lineup makes it easy to configure a reliable glass cockpit system that can grow with your needs without overstretching your budget.
Going with Glass Just Got Easier
Designed specifically for FAR Part 23 Class 1/Class 2 aircraft (singles and twins weighing less than 6,000 lbs), G500 TXi glass touchscreens integrate with the GTN Xi touchscreen GPS/Nav/Comm series¹ to provide a fully certified glass suite solution. Reliable attitude/heading reference system(s) (AHRS) replaces the old-style, maintenance-prone mechanical gyros in your system. Available in 7” portrait or landscape orientations — and in a larger 10.6” horizontal format — the G500 TXi displays offer a variety of configurations to fit your panel and budget. In a single 10.6” installation, the display accommodates PFD and MFD capabilities on the same unit. Optional engine, fuel and electrical readouts (EIS) can also be viewed in a vertical strip alongside the PFD/MFD. A second 10.6” display can be split 80/20 to accommodate MFD and EIS functions, allowing the PFD to show full-screen flight data. The 7” portrait format can act as a dedicated PFD (with HSI map), MFD or EIS — or as a split-screen MFD/EIS display2. And the 7” landscape format can be configured to provide dedicated, PFD information, EIS or split-screen MFD/EIS2.
Flexible Configuration Options
In configuring your system, you can mix and match up to four of the high-resolution touchscreen displays in your cockpit. Or you can start with a single 7” display serving as your PFD and expand the system’s capabilities by adding additional G500 TXi displays. The variety of G500 TXi screen sizes and display orientations can support a multitude of approved cockpit configurations. And each display offers the capability to have a built-in AHRS along with an air data computer (ADC) module integrated on the back of the display unit. As an additional option for remote mounting, a combined air data and attitude heading reference system (ADAHRS) is available, or AHRS and ADC units are available separately. And with the GSU 75 ADAHRS, your G500 TXi PFD can also display attitude information during aerobatic flight as well as maximum flight G indications based on your airframe’s G limits. For aircraft already equipped with the original G500 series flight displays, full TXi compatibility with existing system sensors makes for an easy, cost-effective upgrade path.
Stand-alone or Integrated Engine Indications
Whether it’s integrated in a split-screen view on the 10.6” display or shown on a 7” display, engine and fuel monitoring data is easy to access and interpret with G500 TXi. The optional engine indication system is compatible with most popular Lycoming or Continental 4- to 6-cylinder engines (whether normally aspirated or turbocharged) and can provide support for both single- and twin-engine aircraft. Prominent engine gauges on the display provide real-time indications and support for lean assist mode, pilot advisories, fuel quantities and more — enabling you to optimize fuel economy while maintaining high efficiency and performance from your engine(s). Better still, EIS data is automatically logged to an SD™ card and, with Connext® cockpit connectivity, is wirelessly transmitted to the Garmin Pilot™ app1. This data can then be exported and analyzed by your service team.
Brighter, Faster, Easier, Better
Garmin built the TXi series from the ground up by leveraging the experience gained in designing and fielding thousands of integrated flight displays. The TXi series features an intuitive menu interface that lets you use familiar knobs and/or touchscreen inputs to quickly access the functions, screen views and other flight information you want to see. Powerful dual-core processors boost the system’s graphical display capabilities — with faster zooming, panning and map rendering. Optional Garmin SVT™ synthetic vision technology enables a 3-D virtual reality landscape to be integrated on the G500 TXi flight display. Plus, modernized fonts and backlighting offer improved readability and increased display clarity to help lighten your in-flight visual workload.
HSI Mapping Takes Center Stage
To provide even more situational awareness, G500 TXi includes HSI mapping capabilities on the 7” portrait and 10.6” display configurations, which put an MFD-like perspective map view within the HSI portion of your PFD. In addition to the geographical map, the HSI map view can also support the overlay of NEXRAD imagery and weather inputs from ADS-B and SiriusXM® datalinks. Additional overlays include SafeTaxi® airport diagrams, traffic, terrain and more. HSI map control and on-screen navigation are a snap, thanks to a Garmin innovation that lets you zoom in or out on the map, using a simple and natural single-finger swipe gesture.
High-level Avionics Integration
G500 TXi was designed to interface with a wide range of avionics equipment, including our digital GFC™ 600 series, GFC 500 (requires G5 or GI 275 as standby instrument) and other popular autopilots installed in Class 1 and Class 2 aircraft. You can use the G500 TXi touchscreens for control/display of heading, course and navigation source inputs as well as autopilot mode annunciations — including enhanced indications for IAS and VS modes in GFC 500, GFC 600 and DFC 90 autopilots that show bugs solid when active and hollow when inactive — and more (with compatible inputs). And if the heading bug is out of view on the 7” landscape PFD compass card, off-scale indication arrows show the direction of the bug to improve your situational awareness and prevent the autopilot from changing turn direction during 180-degree turns.
Plus, G500 TXi allows automatic GPS-to-LOC switching when paired with the GTN 750Xi/GTN 650Xi series navigators, which allow the GFC 500 autopilot to fly complete ILS approaches. As an option, separate dedicated PFD controllers are also available in five different control layouts for continuity with the specific autopilot system installed in the aircraft. G500 TXi also offers advanced integration capability with GTN Xi series navigators, providing full touchscreen continuity between the navigation, communication and flight display functions in your panel; you can even tune active and standby radio frequencies right from your flight display’s waypoint info page. And G500 TXi with EIS capabilities enables Smart Rudder Bias in select piston twins when paired with GFC 600 with the yaw damper option.
In emergency engine-out situations, G500 TXi with EIS capabilities enables Smart Rudder Bias in select piston twins when paired with GFC 600 with the yaw damper option. And in piston singles, G500 TXi supports Smart Glide™ engine-out navigation functionality when paired with a GTN Xi series navigator. Once activated, G500 TXi even displays a Smart Glide data panel with airport information as well as a glide range ring on the map.
Redundancy Adds Assurance
For extra peace of mind in systems where multiple displays are installed, G500 TXi is designed to enter a reversionary mode — allowing a single 7” portrait or 10.6” display to present primary flight instrumentation and engine indications (if EIS equipped) — in the unlikely event of another display failing or shutting down. The displays have backup GPS receivers built-in as well, providing redundancy in the event your system’s primary GPS navigator ever fails.
Connext Cockpit Connectivity
For even more ease-of-use functionality, team your G500 TXi displays with a GTN 650 or GTN 750 or GTN 650Xi or GTN 750Xi series navigator and our Flight Stream 510 wireless gateway¹. This setup enables our Connext wireless cockpit connectivity, which lets you stream information in real time between your avionics and compatible mobile devices running the Garmin Pilot, ForeFlight mobile or FltPlan Go apps. This turns your tablet or smartphone into a true cockpit interface. You can use your mobile device to create flight plans whenever and wherever it’s convenient, and then easily transfer the data to your avionics once you get to the airport. You can also wirelessly stream weather, traffic, attitude information and more from your avionics to your compatible device4. Plus, by using Database Concierge via Flight Stream 510, you can wirelessly transfer aviation databases downloaded to the Garmin Pilot app on your mobile device to your GTN 650/750 or GTN 650Xi/750Xi and G500 TXi system. For aircraft without a GTN navigator, Flight Stream 510 can also be paired directly with a TXi display to provide flight data to Garmin Pilot — and/or provide EIS data, when EIS TXi is installed.
Add Standby, Weather, Traffic and Other Options
Pairing G500 TXi with a GI 275 electronic flight instrument adds standby attitude indicator capabilities to your panel. The displays even synchronize heading and airspeed bugs for easy transition to the standby instrument. G500 TXi seamlessly integrates with a variety of optional sensors and datalinks to support the latest weather and traffic monitoring capabilities. Our Doppler-capable GWX™ 75 onboard color radar features a reliable, solid-state design as well as optional turbulence detection and ground clutter suppression capabilities. For pilots flying in the U.S., our GTX™ 345 series all-in-one ADS-B transponders provide easy access to subscription-free ADS-B weather and advanced dual-link traffic services. Plus, by installing a GDL® 69A satellite receiver with your system, you can add ground-and-airborne-accessible SiriusXM satellite weather and audio entertainment channels to the mix (subscriptions required). For a worldwide datalink solution, our GSR 56 datalink provides weather data and radar imagery through the Iridium® global satellite network. And for even more advanced traffic surveillance in high-density airspace, G500 TXi integrates with select TAS or TCAS systems, including our GTS™ family of traffic surveillance products. Additionally, TXi also supports multiple video input options that enable the MFD to serve as a live-cam video monitor.
It Remembers Your Likes and Preferences
Don’t you hate it when another pilot starts twiddling with your avionics settings — and neglects to put them back the way you left them? With G500 TXi, those worries are over. Your custom pilot profile settings can be saved within the system or loaded onto a removable SD card — which means you can also take your settings with you to another G500 TXi-equipped aircraft. Pilots operating within a flying club or flight school will especially appreciate this feature. Your preferred settings for backlighting, map settings and more can all be configured under your individual profile — allowing you to easily restore your system preferences prior to each flight.
Learn More About G500 TXi
With installation approval available for hundreds of aircraft models, retrofitting your cockpit with G500 TXi is a straightforward, all-bases-covered proposition. You can select from a wide range of display formats. And no matter which configuration you choose, you’ll be flying with the peace of mind that comes with an industry-leading 2-year warranty, backed by our award-winning product support team. See your authorized Garmin installation center to get on board with a G500 TXi upgrade for your aircraft.
- 10.6" or 7" diagonal color LCD options
- RGB backlighting technology
- High resolution: GDU 1060 - 1280 pixels (W) x 768 pixels (H), GDU 700P - 480 pixels (W) x 800 pixels (H)
- Direct sunlight readable
- Auto, manual, or lighting bus inputs for dimming
- Field upgradable software

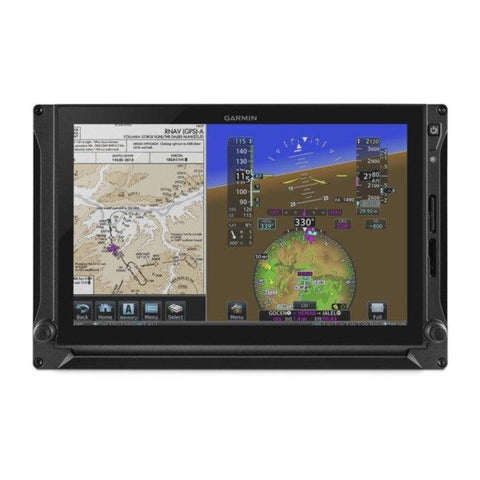

Leveraging industry-leading integrated cockpit technology, the large 10.6” TXi series touchscreen can accommodate PFD and MFD capabilities as well as optional engine instrumentation — all in 1 split-screen format positioned directly in the pilot’s primary field of view. The display area is more than 20% larger than earlier-generation G500/G600 series displays designed with side-by-side 6.5” screens.

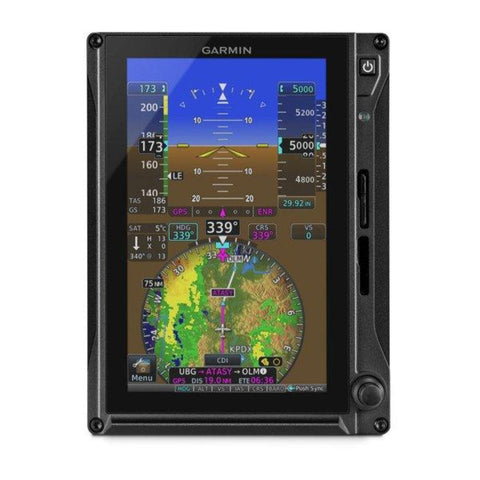

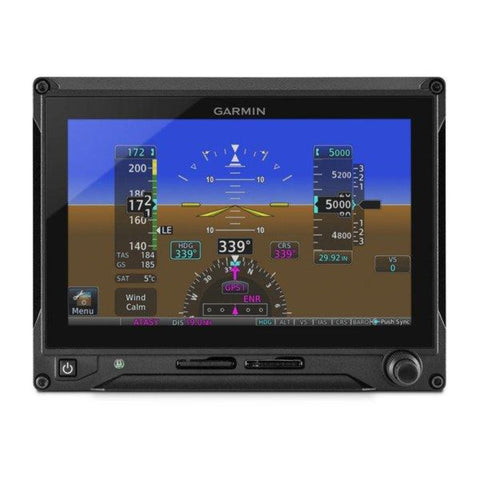

7" Portrait Display
This versatile display can be used in a variety of configurations to fit your panel space and avionics budget. It can serve as part of a multi display system or as a dedicated stand-alone PFD, MFD or EIS display. The PFD includes an HSI mapping feature, allowing an MFD-like perspective map display to be viewed together with directional and attitude information. Pairing two 7” portrait displays gives you 30% more pixels than the original G500/G600 combo screens, offering increased clarity.
Touch and Knob Controls
With its flexible, intuitive menu interface, TXi lets you use familiar knobs and/or touchscreen inputs to quickly access the functions, screen views and other flight information you want to see.
An MFD in Your HSI
With navigation inputs, the TXI series can put an MFD-like perspective map view within the HSI portion of your primary flight display. This HSI map can incorporate NEXRAD imagery and weather data as well as SafeTaxi® diagrams, traffic, terrain alerting and more.
Available SVT synthetic vision uses sophisticated graphics modeling to provide a virtual reality perspective of terrain and water features, obstacles, runways, traffic targets, flight path information and more.
TXi dynamically draws moving maps with airspace boundaries, navaids, flight plan routings and more, overlaying the aircraft’s position on top so it’s easy to understand what matters most. Georeferenced FliteCharts®, SafeTaxi diagrams and optional Jeppesen®-format ChartView™ approach charts are also available.
Track Weather Wherever
A wide range of available weather solutions can be displayed on your TXi series touchscreens — everything from onboard digital radar to Stormscope® lightning detection to animated NEXRAD imagery from various satellite or ADS-B ground network links.
Advanced Traffic Display
TXi displays will integrate with a variety of traffic alerting technologies — everything from ADS-B "In" network traffic links with TerminalTraffic™ airport surface monitoring to Garmin's patented TargetTrend™ relative motion technology and active traffic surveillance systems.
Streamlined Touch Interface
The icon-based menus and touch-control interface of the TXi displays are similar to Garmin's other products, especially the GTN™ 650/750 series navigators and the Garmin Pilot™ app for mobile devices. Together they provide full touchscreen continuity between the navigation, communication and flight display functions in your aircraft.
A GTN navigator with a wireless Flight Stream 510 gateway can provide even more connectivity between your avionics and compatible mobile devices running the Garmin Pilot or ForeFlight apps. Upload flight plans. Sync databases. Stream weather, traffic and more. Turn your tablet or smartphone into a true cockpit interface.
Expansive Third-Party Interfaces
TXi was designed to interface with a wide range of avionics and autopilot systems. Garmin invested heavily in test equipment and certifications, to ensure the system will accommodate most popular brands of GA equipment.
Say Goodbye to Standby
Aircraft owners who install G500 TXi dual 7” portrait displays with dual ADAHRS and Garmin's optional backup battery can forego the requirement for standby flight instruments in their light aircraft panels (Class 1 and 2 aircraft under 6,000 lbs max takeoff weight). The all-glass cockpit is now a reality with TXi.
- GDU 1060: 7.25"H, 11.4"W, 3"D
- GDU 700P: 7.25"H, 5.5"W, 3"D
- GDU 1060: 6.49 lbs. (without integral ADAHRS), 7.25 lbs. (with integrated ADAHRS)
- GDU 700P: 3.99 lbs. (without integral ADAHRS), 4.45 lbs. (with integrated ADAHRS)
- GDU 1060: 10-40 VDC, reverse polarity protected, 70 watts typical
- GDU 700P: 10-40 VDC, reverse polarity protected, 42 watts typical
- -20C to +55C operating temp
- -55C to +85C storage temp
- 2 degrees C per minute temp variation
- 95% at 50C humidity
- 35,000 feet max altitude
- Internal cooling, external cooling not required
- TSO-C2d, TSO-C8e, TSO-C10b, TSO-C34e, TSO-C36e, TSO-C40c, TSO-C41d, TSO-C43c, TSO-C44c, TSO-C45b, TSO-C47a, TSOC49b, TSO-C44a, TSO-C63d, TSO-C87a, TSO-C106, TSO-C110a, TSO-C113a, TSO-C118a, TSO-C147a, TSO-C151c, TSO-C157b, TSO-C165a, TSO-C195b, TSO-C198, TSO-C201
