Your angle of attack (AOA) can be a valuable tool in knowing when a stall might occur. When the angle between your aircraft’s wing and the oncoming airflow becomes too great, there won’t be enough lift to support the plane in flight. The Garmin GI 260 AOA indicator is designed to make this valuable AOA information easy to understand with one glance. Unlike systems that rely on lift reserve indication, the GI 260 uses what's known as normalized AOA, which provides the most accurate readout possible in all phases of flight. It provides both visual and audible alerts as a stall becomes increasingly imminent.
Note: This product is an indicator only intended for use with the Garmin G3X EFIS / EMS / GPS System that has the Garmin GAP 26 AOA Probe and GSU 25 ADAHRS.
The GI 260 is designed for quick, at-a-glance understanding of AOA during the most critical phases of flight and offers audible alerts in the event of a high-workload situation. This new system supports the FAA’s recent initiative to broaden adoption of Angle of Attack displays to improve safety. Garmin is now bringing this safety enhancing technology, typically only found on military and commercial aircraft, to general aviation aircraft - all at a price within reach.
Angle of attack offers a precise display of the angle between the wing and the oncoming flow of air. The AOA system provides pilots with a visualized indication of the flight characteristics leading to a stall using a combination of colors and chevrons to help the pilot easily interpret the information. When approaching an impending stall, the GI 260 AOA indicator offers pilots progressive audible and visual alert as the aircraft nears the critical angle of attack. Unlike a lift reserve indicator, the AOA system uses industry-leading normalized AOA technology, providing superior performance throughout all phases of flight.

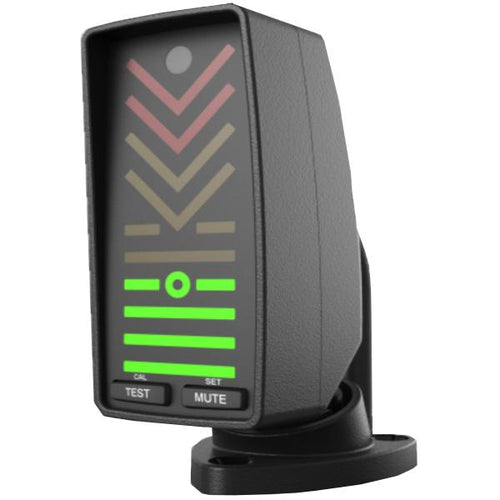

As illustrated, there are four types of intuitive indications to help the pilot easily interpret and respond to these potential aircraft configurations. Green bars at the bottom signal the first indication of angle of attack and build up to the calibrated approach ‘target’. Continual increase of angle of attack beyond ‘target’ AOA, indicates yellow caution alert bars and chevrons pointing down. Once the wing has reached it’s critical angle of attack, red chevrons pointing down lead to a flashing indication to provide the pilot a visual indication of critical angle of attack and includes an audible alert with increasing intensity until reaching a rapid beeping tone with the top flashing red chevron.
