GARMIN

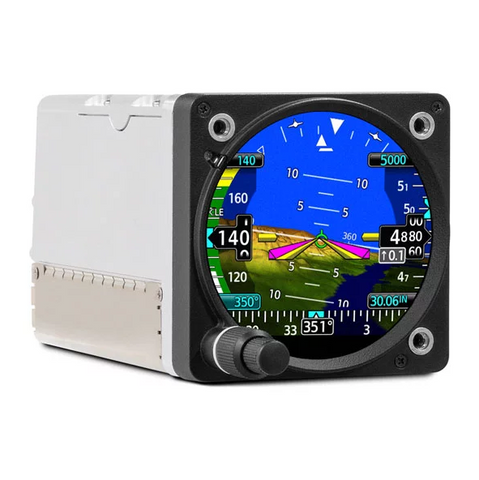

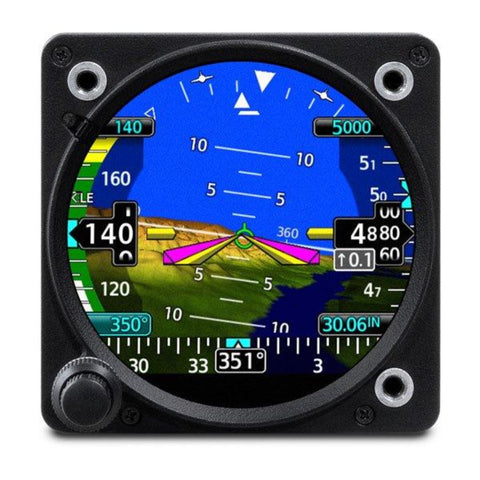

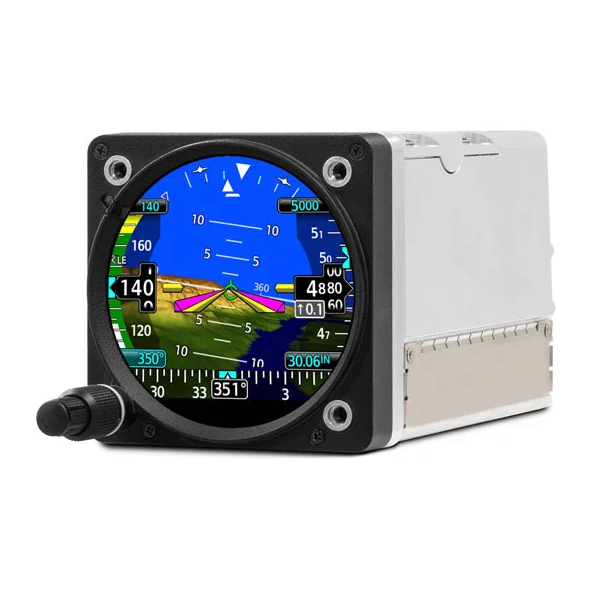

Garmin GI 275 AI/ADI

Part No: 010-02326-10

Call for price

Shipping calculated at checkout.
Version: ADAHRS, Class I/II
DESCRIPTION

REPLACE ANALOG GAUGES WITH ELECTRONIC DISPLAYS

Adaptable to a full range of instrument formats and functions, our GI 275 electronic display lets you keep the classic look of your panel while upgrading with modern, reliable glass touchscreen display technology.

When installed as a CDI, the GI 275 flight instrument is designed to accept a variety of GPS or navigation inputs, allowing up to two GPS sources and two VHF navigation sources. The GI 275 features an Omni Bearing Resolver that allows the flight instrument to interface to a variety of legacy navigation sources without the need for an expensive adapter. Vertical and lateral GPS, VOR/LOC and glideslope deviation can be viewed on the GI 275. CDI source selection can be accomplished through the touchscreen interface, while course and heading selection is completed by using either the touchscreen or dual concentric knob. When pilots replace an older mechanical CDI, GI 275 doubles as a modern digital indicator and adds MFD-like capabilities such as a moving map, weather, traffic and terrain.



Specifications
  • Width: 3.25" (82.6 mm)

  • Height: 3.25" (82.6 mm)

  • Depth: 6.44" (163.6 mm)

  • Depth with Connector: 7.40" (188.0 mm)

  • Unit Weight: 1.9 lbs (0.86 kg) to 2.4 lbs (1.1 kg)

  • Active Display Size: 2.69” diameter

  • Display Resolution: 480 x 433 pixels

  • Operating Voltage: 14/28 VDC

  • Operating Temperature Range: -20°C to +55°C

  • Altitude Range: -1,500 ft to 55,000 ft

  • Wi-Fi Class: 802.11b/g/n

Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.

Interface

Manufacturer

Model

Notes/Info

Autopilot

View Detailed Autopilot Compatibility

GPS Source

Garmin

Internal VFR GPS



GNS 430W/530W Series



GNS 480



GTN 650/750 Series



GTN 650Xi/750Xi Series



GTX 335/345

Requires Integrated GPS Variant

GPS 175/GNC 355/GNX 375



Database Updating

Garmin

GSB 15



Garmin Pilot App



Navigation Receiver

Garmin

GNC 255



GNS 430W/430AW

GNS 530W/530AW



GNS 480 (CNX80)



GTN 650/750



GTN 650Xi/750Xi



SL 30



Collins

VIR-32/33



Honeywell (Bendix/King)

KX 155/155A/165/165A



KN 53



KX 170B/175B



Radar Altimeter

Garmin

GRA 55/5500



Collins

RAC-870



FreeFlight

RA-4500



Honeywell (Bendix/King)

KRA 405B



Traffic Source

Garmin

GTS 800/820/825/

850/855



GTX 33/330/335

TIS-A Only

GTX 345



GNX 375



Avidyne (Ryan)

TAS 6XX/TCAD



Honeywell

(Bendix/King)

KTA870/KMH820



KTA970/KMH920



L-3 Communications

(Goodrich)

SKY497



SKY899



Weather Source

Garmin

GDL 69A

GTN Series, GTN Xi series or TXi Series must also be connected

GTX 345



GNX 375



L-3 Communications

WX-500 Stormscope

GTN Series, GTN Xi series or TXi Series must also be connected
