GI 275 EIS w/ GEA 24 & Sensors
Part No: 010-02325-10 + K00-01300-10
GI 275 EIS With Garmin GEA 24
REPLACE ANALOG GAUGES WITH ELECTRONIC DISPLAYS

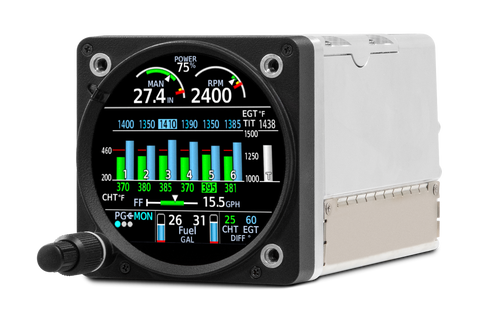

The GI 275 engine indication system (EIS) includes enhanced display layouts that optimize display space and show more engine data on a single page, ultimately helping pilots quickly view essential engine, fuel, and electrical data. In addition, improved graphical information and gauges are used to help pilots dynamically visualize sensor data and accurately assess the aircraft’s engine performance.
Garmin Aircraft Digital Engine Monitor
As an alternative to the dual-concentric knob, the intuitive touchscreen user interface now features page shortcuts that allow the pilot to switch pages with just a single touch of the display. Other enhancements include a new Flight Summary Page, Engine Percent Power display, EIS page shortcuts, user-customizable EIS fields, and more.
Improved EIS page layouts and capabilities

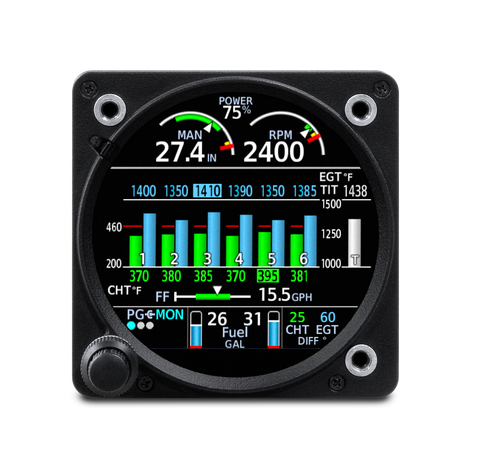

A new bar graph on the Main EIS Page displays exhaust gas temperature (EGT) and cylinder head temperature (CHT) for individual cylinders. For quicker and easier interpretation of engine data, font sizes of select EIS values have been increased. In addition, a new combined EGT/CHT page brings these indications into a single page for simplified monitoring. Other new features include Normalized Mode and turbine inlet temperature (TIT) Lean functionality for appropriately equipped aircraft, improved fuel tank bar gauges, and the ability to display Engine Percent Power at the top of the screen.
New Flight Summary Page
A new Flight Summary Page contains aircraft timers, maximum RPM and temperature limitations for the engine, as well as fuel and lean data that is dynamically updated throughout the flight for real-time analysis in the air, along with a comprehensive post-flight review of engine data on the ground.
EIS Page shortcuts and customizable fields
Shortcuts have been added with increased touch functionality to enable pilots to quickly access more detail with regard to specific EIS data. With a single touch of the EGT/CHT indications on the main page, the GI 275 EIS quickly switches to the dedicated EGT/CHT page. To more easily access fuel calculations, pilots can touch the fuel gauge from the main page to switch to the fuel computer page. In addition, pilots can touch the RPM area on any page to return to the main page. Pilots also now have the ability to customize the AUX Page EIS fields relevant to their flight with user-selectable buttons accessed via the touch screen.
Wireless EIS Data Logging and Streaming
Pilots can stream and view EIS data in real-time on the Garmin Pilot™ App, with the data later uploaded automatically to flyGarmin.com for storage and further review. This seamless integration allows owners and operators to get the most out of their aircraft and engine investment by easily reviewing real-time and historical engine data performance at any time.
Lightweight and compact, the GI 275 EIS is a reliable, modern, and feature-packed engine indication solution intentionally designed to take advantage of the common 3.125-inch flight instrument size, reducing installation time and preserving the existing aircraft panel. In addition, its vibrant, high-resolution touchscreen display and wide viewing angle offer superior readability in the cockpit. These new GI 275 EIS capabilities are expected to be available in August 2021 via a software update. For full installation details, and to purchase the GI 275 EIS, contact a Garmin Authorized Dealer. The GI 275 also comes with a two-year warranty.
Engine Sensors Included with Packages:
4 or 6 Cylinder packages include the appropriate number of EGT/CHT senders/adapters, fuel flow sensor, and manifold pressure sensor when selected.
ENGINE INFORMATION SYSTEM
With optional interface module and sensors, GI 275 can serve as a primary EIS display for piston engine, fuel, electrical and other data. Use dual GI 275 displays to monitor twin-engine aircraft.
Graphical display of cylinder head and exhaust gas temperatures allows you to pinpoint the optimal fuel/air mixture for efficient power management.
LEAN ASSIST MODE
This function of the Garmin EIS automatically checks the EGT of all cylinders and identifies your preferred rich/lean setting to balance efficiency and performance.
INTEGRATED FUEL COMPUTER
In addition to fuel quantity, the Garmin EIS monitors fuel flow and GPS information to estimate how much fuel, range and flight time you have left to go at current settings.
With EIS on your GI 275, color-coded pilot alerts/advisories help maintain engine performance and safety. Flashing cues quickly identify out-of-limit exceedances.
AUTOMATIC DATA LOGGING
GI 275 Unit Specs:
- Width: 3.25" (82.6 mm)
- Height: 3.25" (82.6 mm)
- Depth: 6.44" (163.6 mm)
- Depth with Connector: 7.40" (188.0 mm)
- Unit Weight: 1.9 lbs (0.86 kg) to 2.4 lbs (1.1 kg)
- Active Display Size: 2.69” diameter
- Display Resolution: 480 x 433 pixels
- Operating Voltage: 14/28 VDC
- Operating Temperature Range: -20°C to +55°C
- Altitude Range: -1,500 ft to 55,000 ft
- Wi-Fi Class: 802.11b/g/n
GEA 24 Engine Adapter Specs:
- Width: 6.5" (161.5 mm)
- Height: 1.9" (48.3 mm)
- Depth: 3.0" (76.2 mm)
- Unit Weight: 0.71 lbs (0.322 kg)
- Operating Voltage: 14/28 VDC
- Power requirements: 14Vdc 0.43A Max, 28Vdc 0.21A max
- Operating Temperature Range: -45°C to +70°C
GEA 110 Engine Adapter Specs:
- Width: 4.8" (121.9 mm)
- Height: 6.4" (162.6 mm)
- Depth: 1.63" (41.4 mm)
- Unit Weight: 1.208 lbs (0.548 kg)
- Operating Voltage: 14/28 VDC
- Power requirements: 14Vdc 0.30A max, 28Vdc 0.15A max
- Operating Temperature Range: -55°C to +85°C
Questions & Answers
See below for answers to our most popular questions.
Any Chance that you could have two of these on single engine configuration. similar to EI CGR 30P &C engine monitors for more display real estate?
No, sorry. The STC does now allow for that
Will this work for a 4-fuel tank plane??
Yes, the fuel quantity function can show two main and two aux fuel quantity.
Is this approved to be the Primary display for oil temp, pressure, fuel quantity CHT, voltage, etc., so my old existing gauges could be removed?
Yes, the GI-275/EIS is a certified replacement for all engine gauges in the airplane.
